Actuator-Mode Door-Front

Component ID: 3
Component : ACTUATOR-MODE DOOR-FRONT

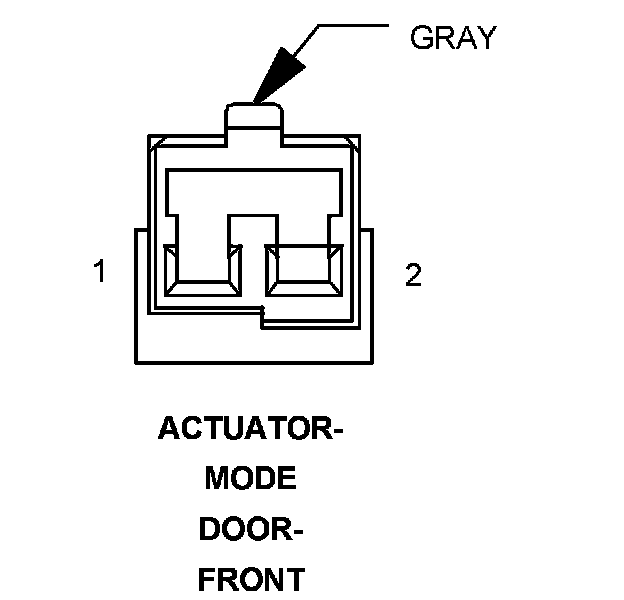

Connector:
Name : ACTUATOR-MODE DOOR-FRONT
Color : GRAY
# of pins : 2




Pin Circuit Description
1 C35 20LB/OR FRONT MODE DOOR DRIVER (A)
2 C135 20DB/GY FRONT MODE DOOR DRIVER (B)
2 C34 20DB/LB COMMON DOOR DRIVER (B)

Component Location - 20
