Actuator-Blend Door-Driver

Component ID: 1

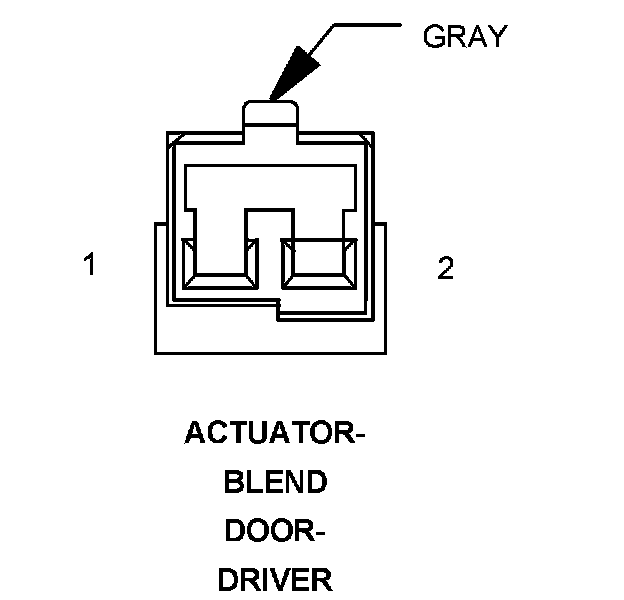

Component : ACTUATOR-BLEND DOOR-DRIVER

Connector:
Name : ACTUATOR-BLEND DOOR-DRIVER
Color : GRAY
# of pins : 2




Pin Circuit Description
1 C61 20DB/LG DRIVER BLEND DOOR DRIVER (A)
2 C161 20LB/WT DRIVER BLEND DOOR DRIVER (B)
2 C34 20DB/LB COMMON DOOR DRIVER (B)

Component Location - 20
