Brakes and Traction Control: Testing and Inspection







BASE BRAKE SYSTEM

NOTE: There are three diagnosis charts following that cover the RED BRAKE WARNING INDICATOR LAMP, BRAKE NOISE and OTHER BRAKE CONDITIONS.

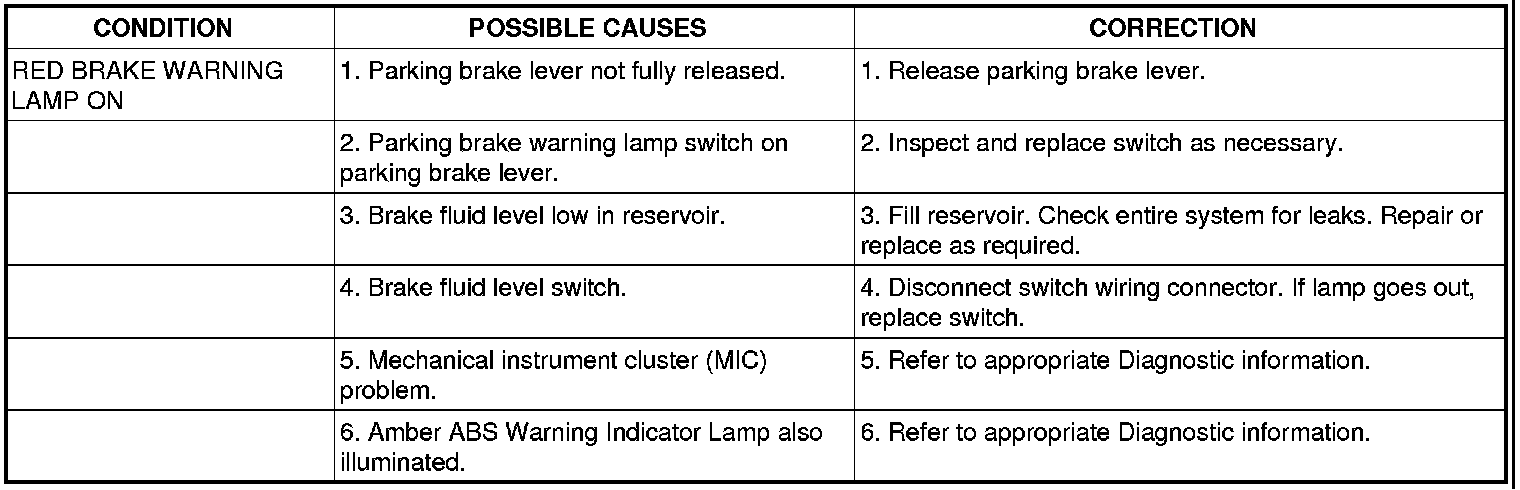

RED BRAKE WARNING INDICATOR LAMP

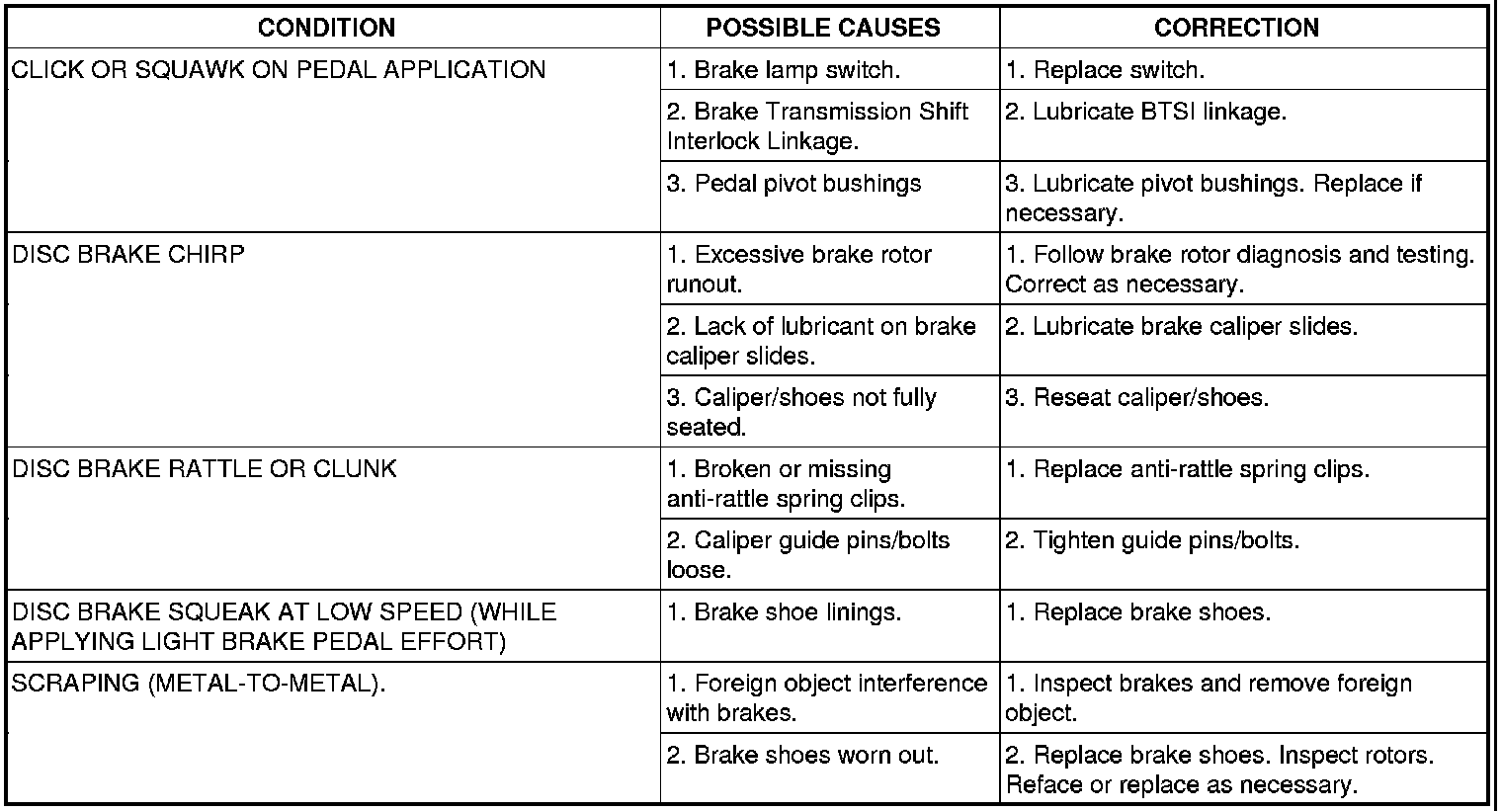

BRAKE NOISE

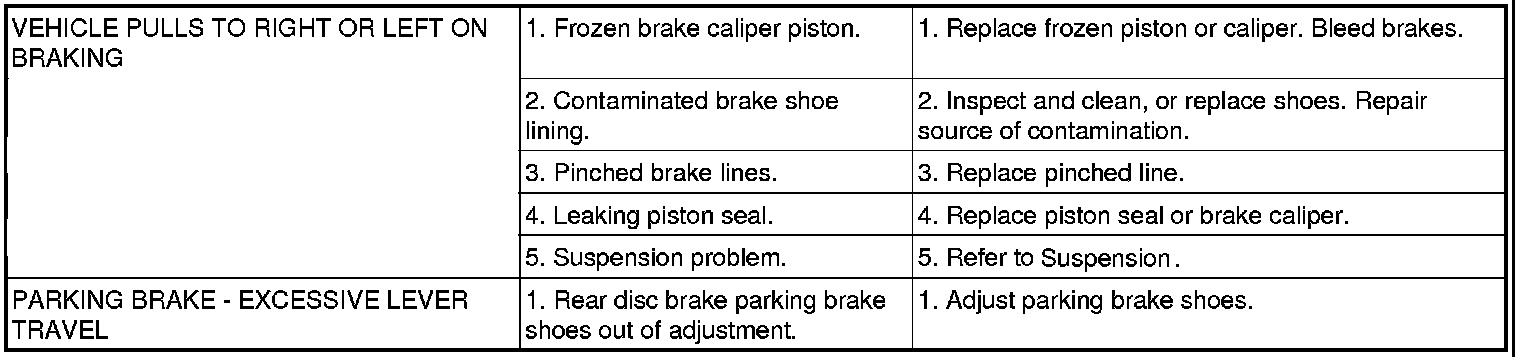

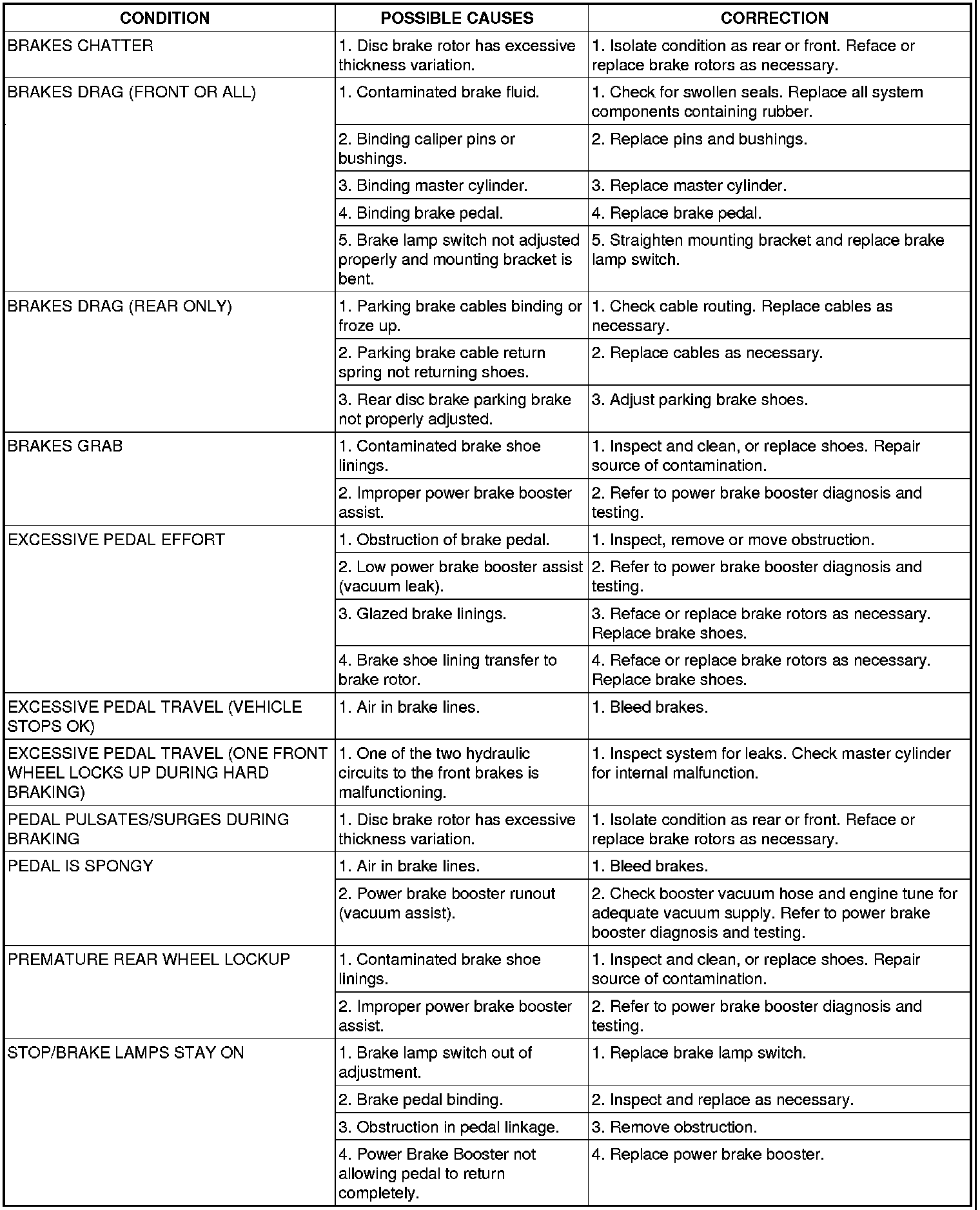

OTHER BRAKE CONDITIONS
