Removal

REMOVAL

1. Remove shift bezel. Console Shifter Bezel - Removal.

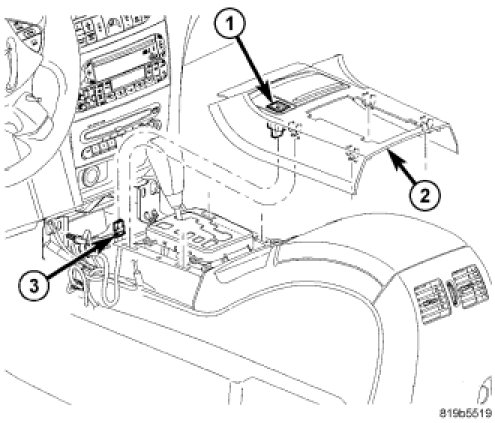

2. Unsnap transmission range indicator surround bezel (2) from center console, then disconnect wiring connector (3) at ESP Off switch (1).
3. Remove ESP Off switch (1) from bezel.
