REMOVAL

1. Disconnect and isolate battery negative cable from battery post.
2. Lock out automatic adjuster in parking brake lever. Service and Repair
3. Raise and support vehicle. Maintenance

NOTE: It may be necessary to back off parking brake shoe adjustment to allow sufficient slack to disengage cable buttons from connectors in following two steps.





4. Slide left rear cable button (11) inboard and remove from equalizer (10).
5. While holding cable connector on end of front cable (5) secure with a pair of pliers at the front cable button, slide right rear cable button (4) inboard and remove from cable connector.




6. Slide equalizer (2) off front cable housing (3) and remove.




7. Remove cable guide screw (6) securing front parking brake cable to left body rail (9).
8. Lower vehicle.
9. Roll vehicle off hoist as necessary to open left side doors.
10. Remove left front and left rear door opening sill scuff plates.
11. Remove left front and left rear door weather strips.
12. Remove lower cowl trim.
13. Remove left front seat belt anchor bolt at B-pillar.
14. Remove left B-pillar trim panel.




15. Remove front cable routing clips from studs (3) under left side carpet.
16. Release grommet (1) in floor pan (5) and pull front cable (2) into passenger compartment.




17. Disconnect release rod at parking brake lever.
18. Disconnect wiring connector (1) at parking brake indicator lamp switch (2).
19. Remove body control module. Body Control Module - Removal
20. Remove three mounting nuts and two wiring routing clips, then remove body control module mounting bracket.




21. Remove two mounting bolts (3) and one nut (2), then remove parking brake lever (4) from cowl (1) and place it on driver's floor.




NOTE: Prior to removing cable from lever, note cable routing through lever for ease in reassembly.

22. Remove front cable button (1) from lever take-up reel (2).
23. Remove cable from cam on lever and slide it down into the cable housing until the cable end button contacts the housing.

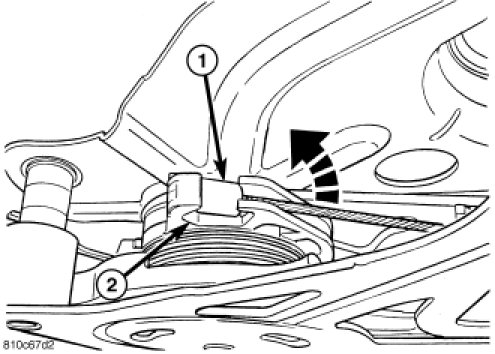

24. Place a 13 mm 12-point box wrench (2) over cable retainer (1) on end of cable housing and collapse retainer fingers.
