Right Rear

INSTALLATION

1. Slide leading end of parking brake cable into hole in flange of crossmember. Slide cable retainer on end of cable housing into hole until retainer fingers click into place.
2. Slide other end of cable through knuckle and shoe support.

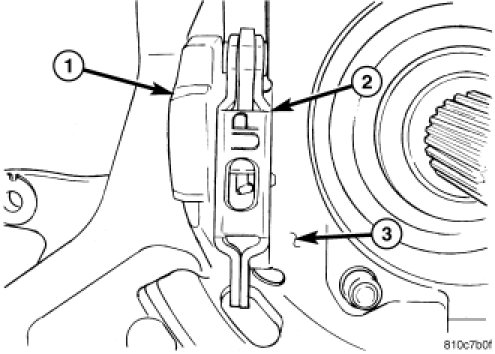

NOTE: When installing actuator in following step, make sure actuator is positioned with word "UP" facing outward.





3. Install shoe actuator on end of parking brake cable between parking brake shoes.
4. Install parking brake shoes on support. Installation

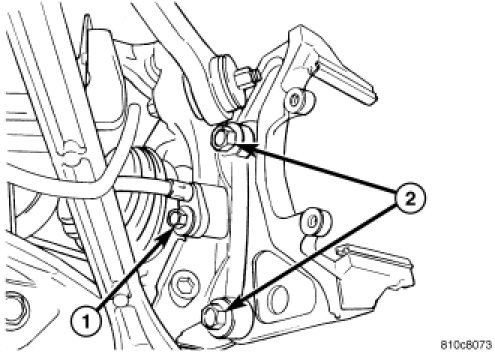

5. Install bolt (2) securing parking brake cable to knuckle. Tighten bolt to 28 Nm (21 ft. lbs.).
6. Install hub and bearing with wheel speed sensor as well as all components necessary to access it. Rear Hub / Bearing - Installation




7. While holding cable connector on end of front cable (5) secure with a pair of pliers at the front cable button, Place right rear cable button (4) into cable connector. Release cables allowing button to seat. It may take some hand pressure to completely seat button.
8. Place left rear parking brake cable button (2) into equalizer (10). Release cables allowing button to seat. It may take some hand pressure to completely seat button.
9. Lower vehicle.

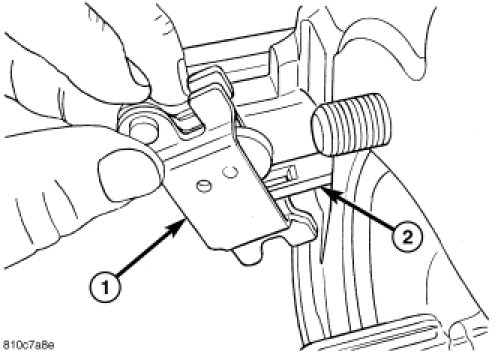

10. Unlock automatic adjuster in parking brake lever. Service and Repair
11. Adjust parking brake shoes as necessary. Adjustments
