Installation

INSTALLATION





1. Align the brake fluid level switch with its mounting hole on the left side of the master cylinder brake fluid reservoir. Push the switch (2) into the fluid reservoir until the switch retaining tab snaps into place (1) on the bottom of the reservoir.

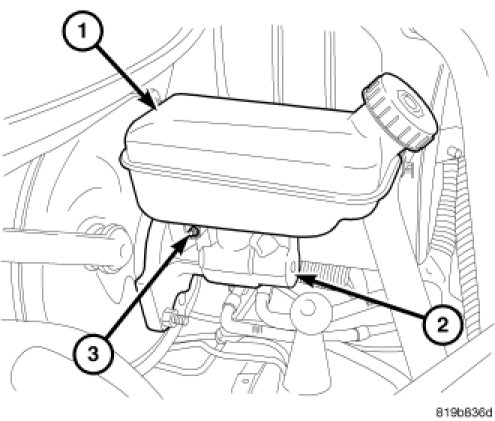

2. Lubricate the reservoir mounting area with fresh clean brake fluid. Place the reservoir (1) in position over the grommet seals in the master cylinder (2). Slide the reservoir into the grommet seals by firmly pressing down on the fluid reservoir. Once installed, make sure fluid reservoir is touching the top of both grommet seals.




3. Install the fluid reservoir mounting screw (3). Tighten the screw to 5.5 Nm (48 in. lbs.).




4. Connect wiring harness connector (2) to brake fluid level switch (1) mounted in brake fluid reservoir.
5. Connect negative battery cable to battery post.
6. Bleed base brake hydraulic system as necessary. Brake Bleeding
7. Road test the vehicle to ensure proper operation of the brakes.
