Disc Brake Caliper Adapter - Installation

INSTALLATION





NOTE: Brake caliper adapters are side-oriented. Left adapters are marked with an "L" while right adapters are marked with an "R" where shown (2).





1. Install disc brake caliper adapter on steering knuckle.
2. Install two bolts (4) securing caliper adapter to steering knuckle. Tighten bolts to 169 Nm (125 ft. lbs.).

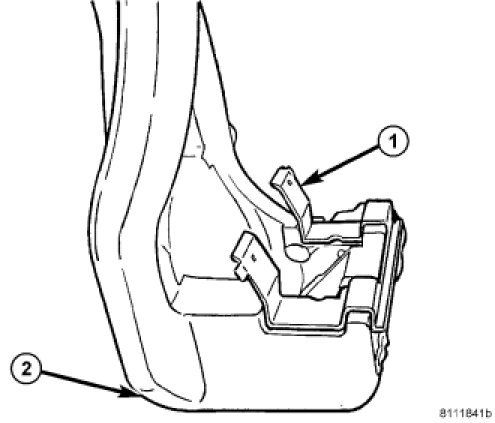

3. Attach two brake shoe anti-rattle clips (one lower and one upper) (1 - lower shown) to adapter matching contour of each clip to adapter's upper and lower caliper abutments.
4. Install NEW brake shoes as well as all components necessary to access them. Brake Pads - Installation
5. Lower vehicle.
6. Pump brake pedal several times to set shoes to caliper and brake rotor.
7. Check and adjust brake fluid level as necessary.
8. Road test vehicle making several stops to wear off any foreign material on brakes and to seat brake shoes.
