Home >> Chrysler >> 2008 >> Pacifica V6-4.0L >> Repair and Diagnosis >> Body and Frame >> Sensors and Switches - Body and Frame >> Sunroof / Moonroof Switch >> Service and Repair >> Control Switch >> Installation

Installation







INSTALLATION

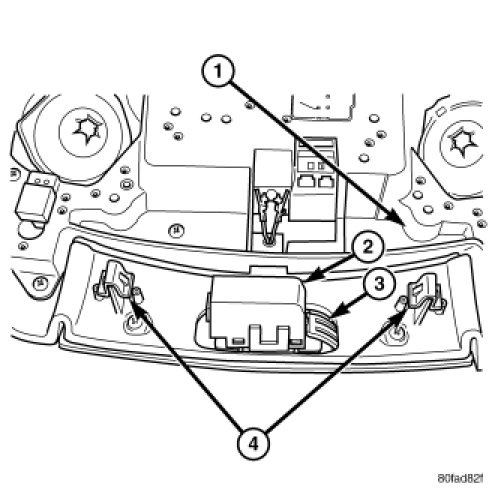

1. Position the switch against the overhead console and push the switch to seat properly in retaining clip.
2. Install the overhead console.
3. Connect the negative battery cable.
