Switch-Heated Seat Middle Row-Left

Component ID: 393

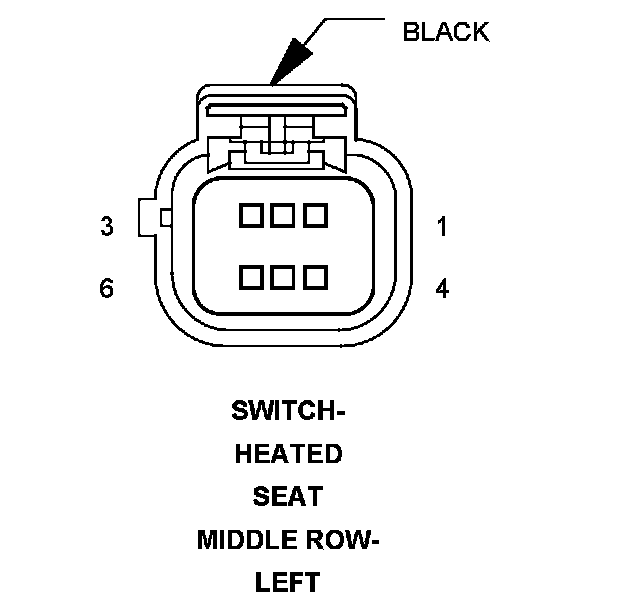

Component : SWITCH-HEATED SEAT MIDDLE ROW-LEFT

Connector:
Name : SWITCH-HEATED SEAT MIDDLE ROW-LEFT
Color : BLACK
# of pins : 6




Pin Circuit Description
1 P181 20LG/DB LEFT MIDDLE ROW SEAT LOW INDICATOR DRIVER
2 E12 18OR/GY PANEL LAMPS DRIVER
3 Z870 20BK/YL GROUND
4 F525 16TN/PK FUSED RUN RELAY OUTPUT
5 P183 20LG/YL LEFT MIDDLE ROW SEAT HIGH INDICATOR DRIVER
6 P77 20LG LEFT MIDDLE ROW SEAT SWITCH MUX

Component Location - 24
