Passenger Seat

DESCRIPTION

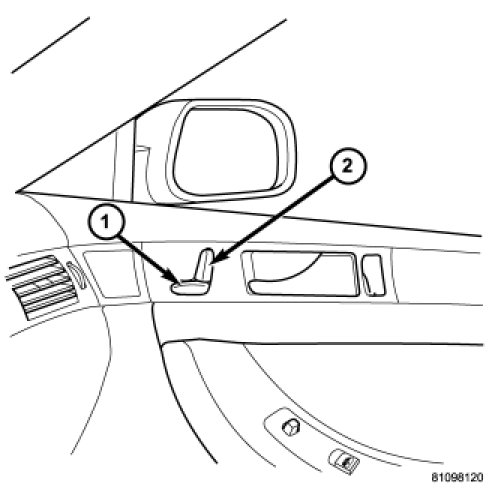

The passenger seat switch assembly includes up to three switches ganged together in one compact switch assembly. The switch is located on the passengers front door trim panel. This seat switch assembly can provide up to three resistive multiplexed inputs into the passenger door module. These inputs control the heated seat, the power seat cushion (1) and power seat back (2) functions, depending on how the vehicle is equipped. All inputs are hardwired resistive mux to the passenger door module to decode axis direction or seat heat level. The passenger door module sends out the system requests over the Programmable Communications Interface (PCI) data bus circuit.

The switch assembly is secured to the back of the front door trim panel with clips.

The switch assembly cannot be adjusted or repaired. If one switch is damaged or inoperative, the entire seat switch assembly must be replaced.
