Installation







INSTALLATION

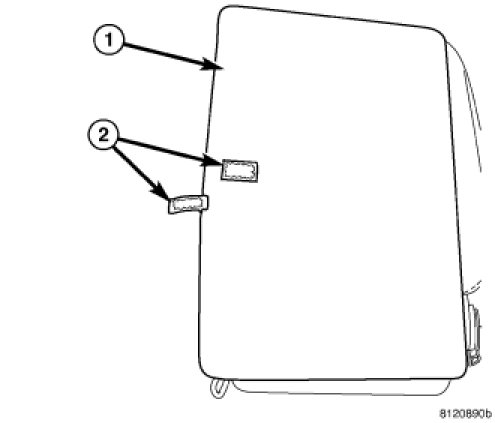

1. Place second row seat load floor panel into position.
2. Press on seat back load floor panel to engage push pins to seat back frame.
