Installation







INSTALLATION

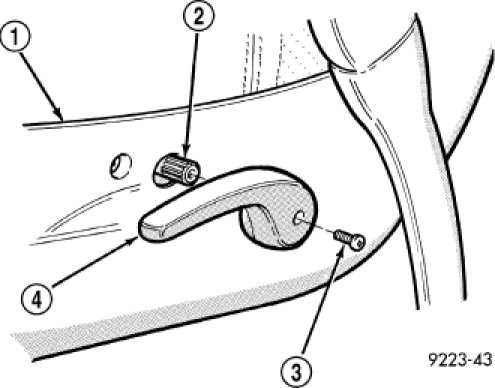

1. Place tumble handle in position on spline shaft.
2. Install screw to hold tumble handle to recliner spline shaft.
