Front Seat

INSTALLATION

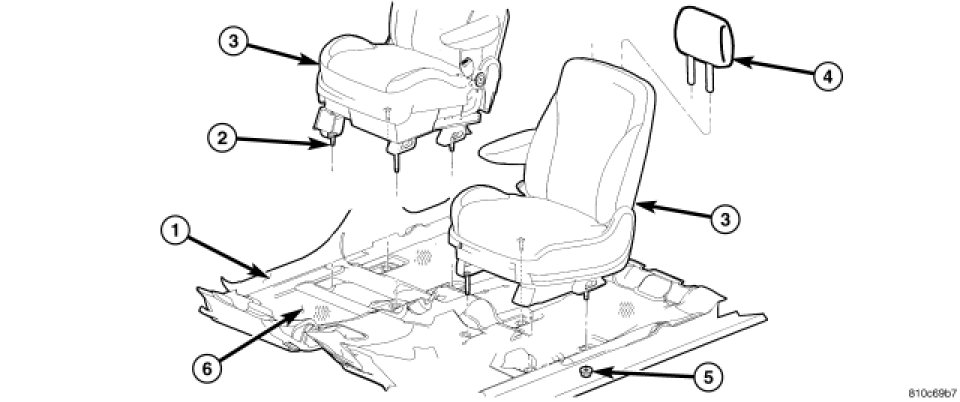

1. Place front seat into vehicle.

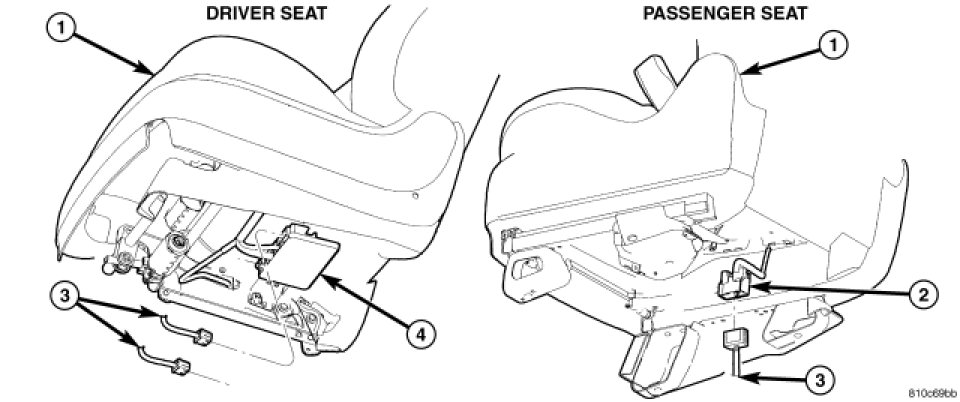

2. Connect wire connectors under seat.
3. Place front seat studs into mounting holes.
4. Raise and support vehicle. Maintenance.




5. Install four nuts attaching seat to floor pan.
6. Tighten nuts to 88 Nm (65 ft. lbs.) torque.
7. For right side front seat, install muffler to body heat shield. Description.
8. For left side front seat, install vapor canister. Vapor Canister - Installation.
9. Remove vehicle supports and lower vehicle.
10. Install front seat headrest. Headrest - Installation.
11. Connect battery negative cable.
