Installation

INSTALLATION

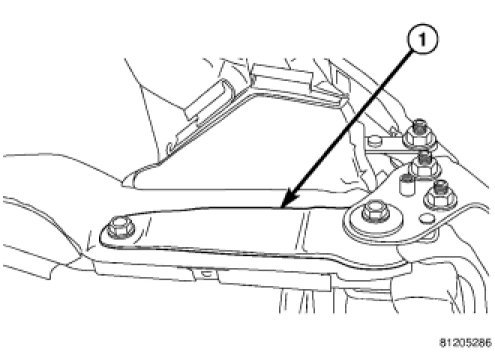

1. Place inboard free pivot assembly into position.
2. Install two bolts attaching inboard free pivot to inner seat back. Install two nuts attaching inboard free pivot to inboard riser.
3. Engage seat cover J-straps.

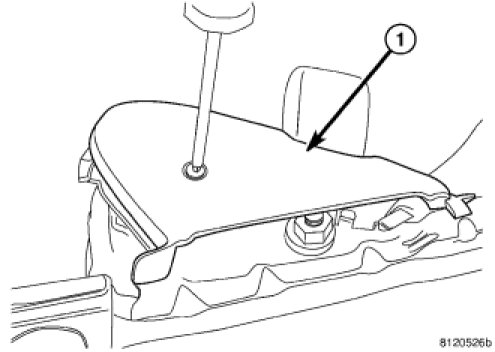

4. Install inboard pivot drive shield and screw.
5. Align load floor panel and push pins fasteners with holes in seat frame and press into position.

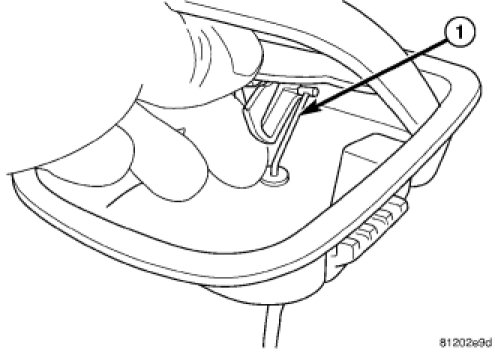

6. Connect fold flat cable to handle and press handle into position on load floor panel.
7. Install third row seat. Seat - Installation.
8. Install rear floor stowage bin. Installation.
