Removal

REMOVAL





1. Open liftgate.




2. Using finger, disengage fold flat cable from handle.




3. Release tab attaching fold flat handle to load floor panel.
4. Disconnect fold flat cable from handle and remove handle from load floor panel.

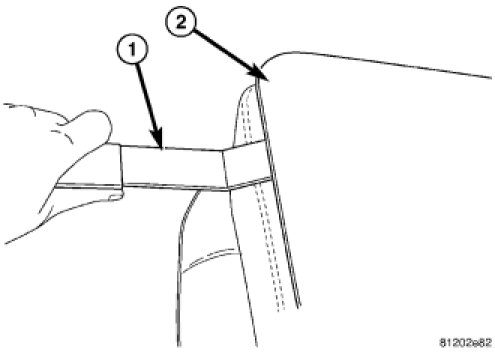

5. Remove load floor panel by using a trim tool and lifting up the edges to disengage the push pins.
6. Remove load floor panel from seat back frame.

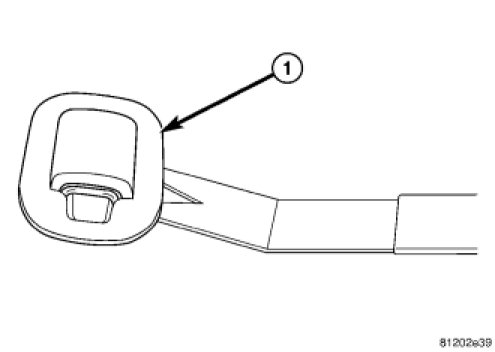

7. Remove child seat tether bezel, if equipped.
