Front Seat Shields - Removal

REMOVAL




FRONT SEAT SHIELDS

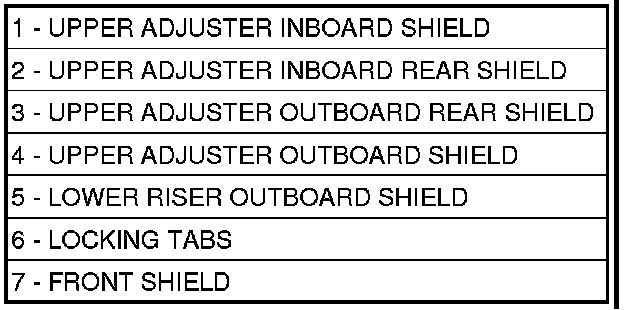

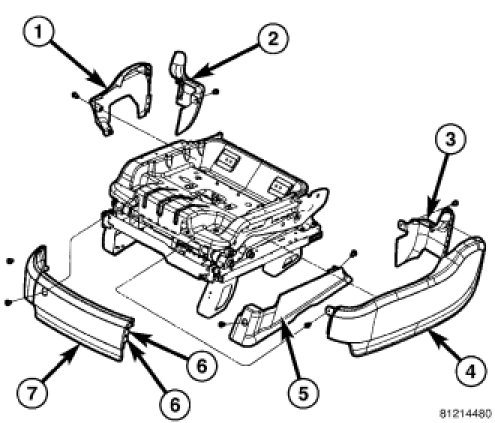

The front seat shield positions and attachment points.

UPPER ADJUSTER INBOARD AND REAR SHIELD

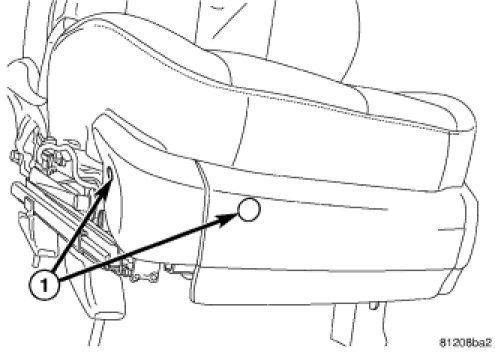

1. Remove upper adjuster inboard attaching screw.

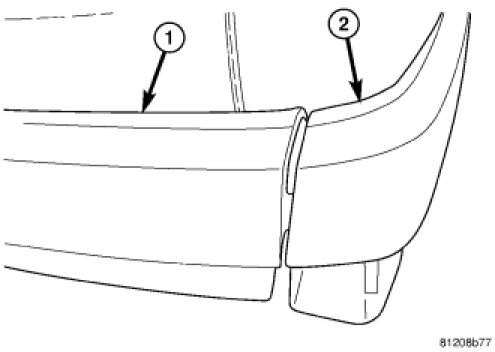

2. Pull rear edge away from upper adjuster inboard rear shield to release locking tab.
3. Remove upper adjuster inboard rear shield attaching screw and remove shield.
4. Slide horizontally forward to disengage.

FRONT SHIELD





1. Remove front shield attaching screws.
2. Pull forward on front shield edge by the upper adjuster outboard shield to disengage locking tabs.
3. Remove front shield.

UPPER ADJUSTER OUTBOARD AND REAR SHIELD

1. Remove front attaching screw.
2. Pull rear edge away from upper adjuster outboard rear shield to release locking tab.




3. Remove upper adjuster outboard rear shield attaching screw and remove shield.

LOWER RISER SHIELD

1. Remove front and rear attaching screws.
2. Remove lower riser shield.
