Removal

REMOVAL





1. Open liftgate.
2. Remove rear floor stowage bin. Removal.
3. Remove third row seat. Seat - Removal.
4. Using finger, disengage fold flat cable from handle.

NOTE: Use care not to stretch or kink cable.





5. Release tab attaching fold flat handle to load floor panel.
6. Disconnect fold flat cable from handle and remove handle from load floor panel.
7. Remove load floor panel Seat Back - Removal.




8. Remove two bolts (on outboard side of seat) attaching drive link assembly.
9. Remove drive link assembly.




10. Remove outboard seat back shield.




11. Disconnect fold flat cable from outboard fold flat mechanism.

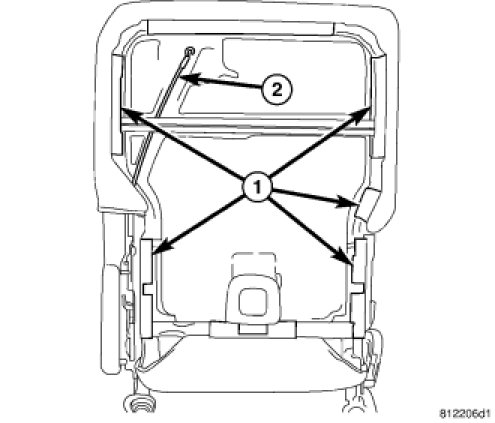

12. Remove fold flat cable from seat back.
