Installation

INSTALLATION





1. Install fold flat cable.
2. Connect fold flat cable to outboard fold flat mechanism.
3. Install outboard seat back shield.
4. Place drive link assembly into position.
5. Install two bolts (on outboard side of seat) attaching drive link assembly. Tighten to 10 Nm (7 ft. lbs.) torque.

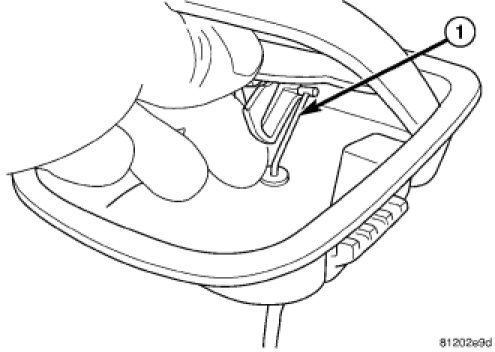

6. Connect fold flat cable to handle.
7. Place handle into position on load floor panel.

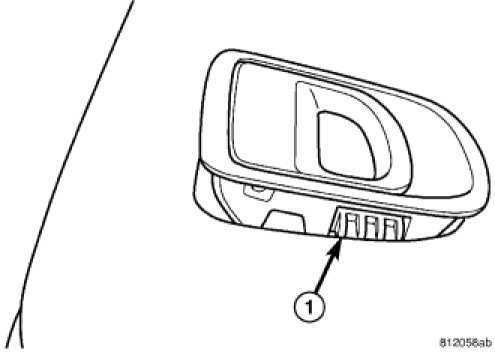

8. Depress tab and press handle into seated position.
9. Install third row seat. Seat - Installation.
10. Install rear floor stowage bin. Installation.
11. Close liftgate.
