Driver

INSTALLATION

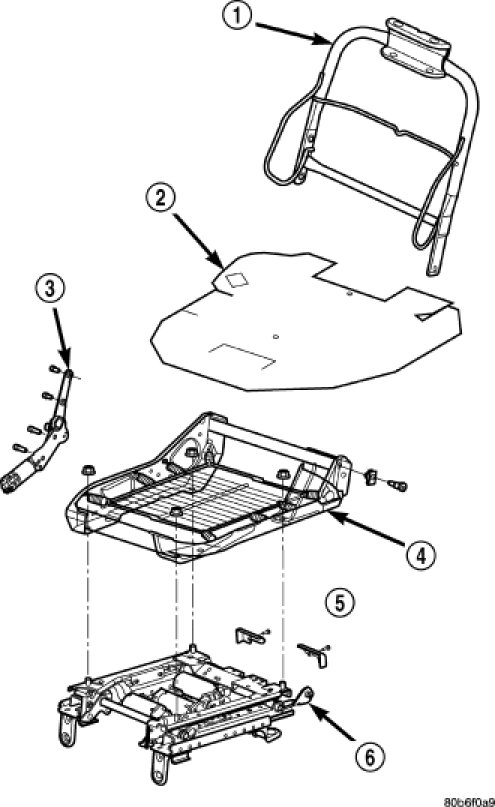

1. Position the seat cushion frame (4) onto the power seat track (6).
2. Install the four power seat track retaining bolts in the seat cushion frame. Tighten the bolts to 28.5 Nm (21 ft. lbs.).
3. Position the seat back frame (1) and install the two seat back frame mounting bolts and the two seat back recliner (2) bolts. Tighten the bolts to 55 Nm (40 ft. lbs.)
4. Route and connect the electrical connectors between the power seat track and the seat assembly.
5. Install the seat side cover assemblies Front Seat Shields - Installation Installation Installation.
6. Install the rear fabric blocker trim panel on the rear of the front seat.
7. Position the Memory Heated Seat Adjustable Pedal Module (MHSAPM) and connect the module electrical connectors.
8. Install the MHSAPM retaining screws.
9. Install the seat assembly in the vehicle, Seat - Installation.
