Heater-Seat Back-Passenger

Component ID: 133
Component : HEATER-SEAT BACK-PASSENGER

Connector:
Name : HEATER-SEAT BACK-PASSENGER
Color : GREEN
# of pins : 2




A P98 18BK PASSENGER HEATED SEAT DRIVER
B P97 18BK PASSENGER SEAT HEATER GROUND

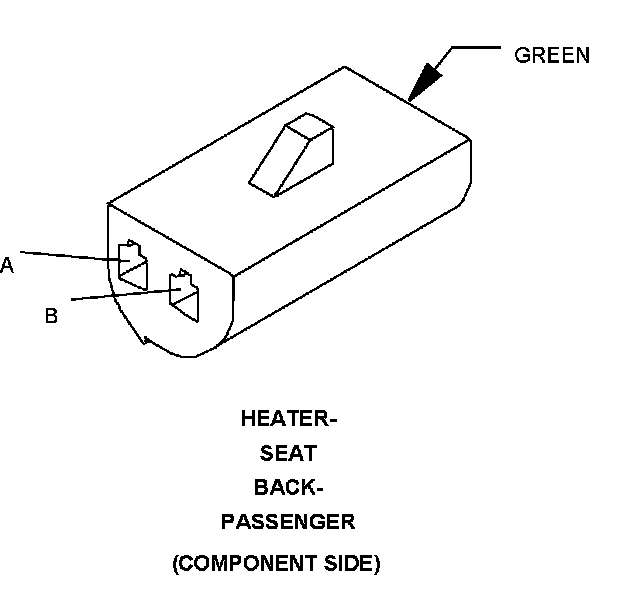

Connector:
Name : HEATER-SEAT BACK-PASSENGER
Color : GREEN
# of pins : 2
Qualifier : (COMPONENT SIDE)




A BK PASSENGER HEATED SEAT DRIVER
B BK PASSENGER SEAT HEATER GROUND
