Second Row

INSTALLATION

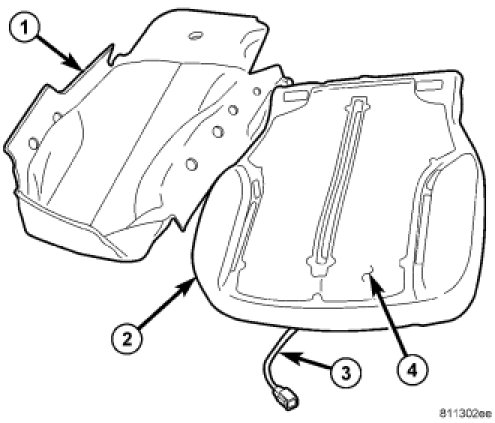

1. Place cover on cushion.
2. Install cushion and cover to seat pan.
3. Engage J-straps and push pins to seat pan.
4. Install four screws attaching lower plastic cover, to under side of seat.
5. Install hinge to floor plastic cover.
6. Install three screws attaching inner side shield hinge area.
7. Install three screws attaching side shield at recliner handle side.
8. Push on front recliner handle to lock into position.
9. Install screw attaching floor dump release handle.
10. Install two screws attaching outer side shield buckle side.
11. Connect heat element wire harness.
12. Install second row seat. Seat - Installation.
13. Install headrest. Headrest - Installation.
14. Connect battery negative cable.
