Installation

INSTALLATION

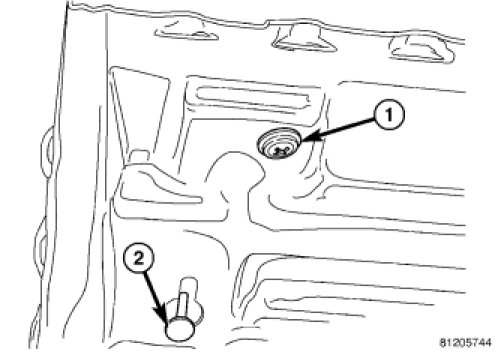

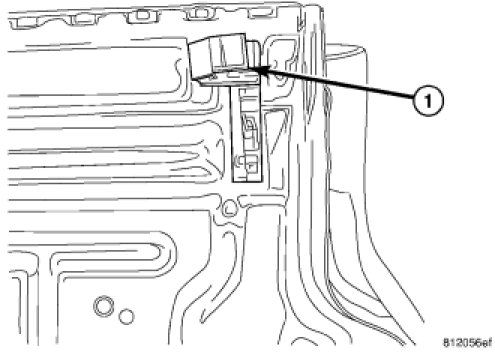

1. Place cushion slider into position.




2. Install cushion attaching screw to cushion pan.




3. Install seat cushion cover and foam pad onto seat pan.

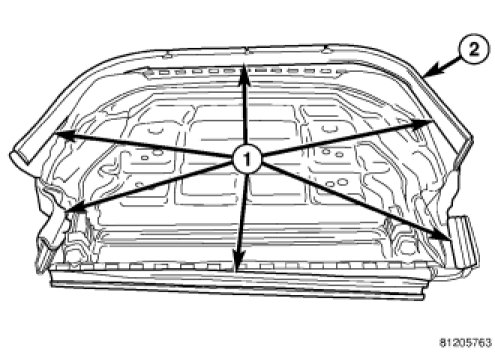

4. Engage J-straps.
5. Install cushion assembly onto the seat risers.
6. Install cushion assembly by sliding the front links onto the riser pins and twisting the cushion assembly to engage the rear sliders onto the riser tracks.
7. Install two bolts attaching front cushion pan to link and risers. Tighten to 29 Nm (21 ft. lbs.) torque.




8. Install drive link assembly.
9. Install two bolts attaching drive link assembly. Tighten to 10 Nm (7 ft. lbs.) torque.
10. Install third row seat. Seat - Installation.
11. Install rear floor stowage bin. Installation.
12. Close liftgate.
