Installation

INSTALLATION

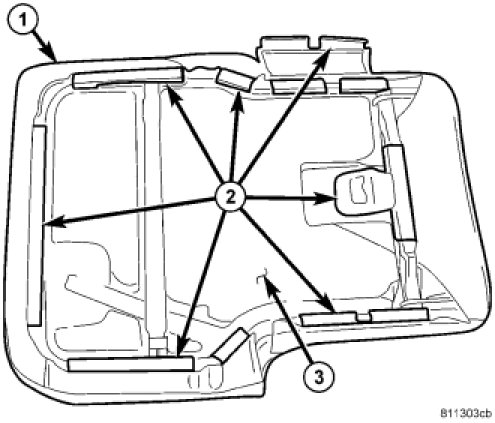

1. Place seat back cover onto cushion.
2. Install seat back cover and cushion to seat back frame.
3. Engage J-straps.




4. Install two bolts attaching inner seat back to inboard free pivot assembly. Tighten to 48 Nm (35 ft. lbs.).
5. Install two bolts attaching outer seat back to outboard fold flat mechanism. Tighten to 48 Nm (35 ft. lbs.).




6. Install outboard seat back shield.
7. Install one screw attaching inboard shield.
8. Install two bolts attaching drive link assembly. Tighten to 10 Nm (7 ft. lbs.) torque.
9. Align load floor panel and push pins fasteners with holes in seat frame and press into position.




10. Connect fold flat cable to handle and press handle into position on load floor panel.
11. Install third row seat. Seat - Installation.
12. Install rear floor stowage bin. Installation.
