Installation

INSTALLATION

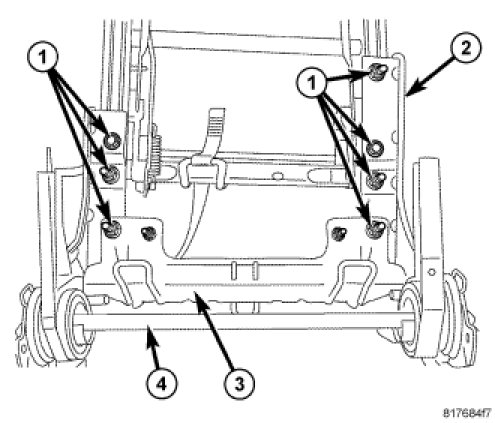

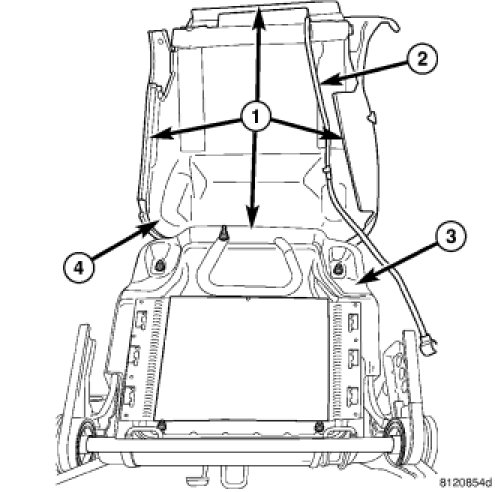

1. Place seat back frame/recliners/CRAS bracket and torque rod in position on riser and leg assembly.

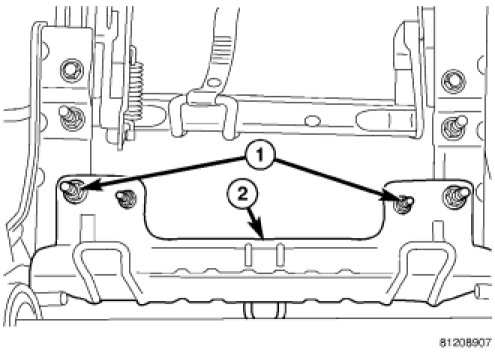

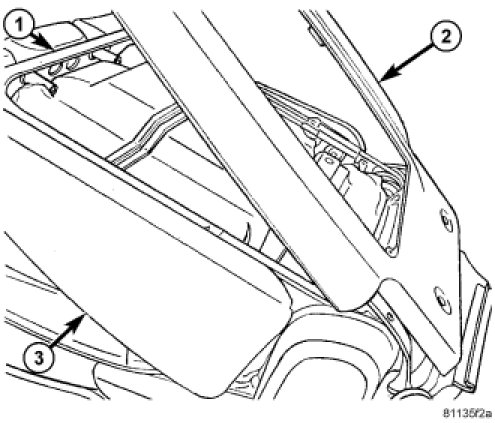

2. Install two bolts and five nuts attaching lower recliner bracket to riser and leg assembly. Tighten nuts to 48 Nm (35 ft. lbs.) torque, and tighten bolts to 29 Nm (21 ft. lbs.) torque.




3. Place seat cushion pan into position.

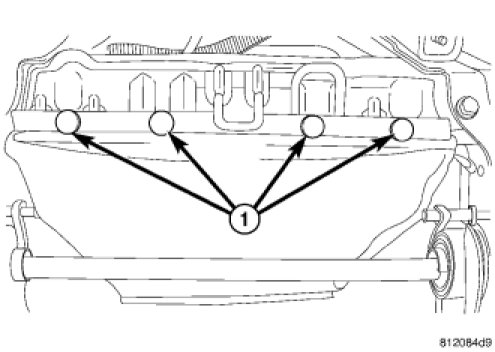

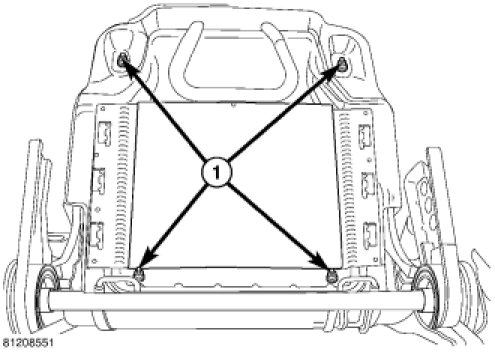

4. Install four seat cushion pan nuts.




5. Place seat cushion foam and cover in position on seat pan.




6. Connect the J-strap and install push pin fasteners at the rear of seat cushion pan.




7. Route to under side of cushion pad and connect heated seat wire harness and three attachments.

NOTE: Use care not to damage heated seat wire harness.

8. Install upper recliner bolts to seat back frame, and tighten bolts to 48 Nm (35 ft. lbs.) torque.




9. Place seat foam/cover in position and work the foam and cover under recliner torque rod.
10. Feed seat back harness through hole in shield. Connect wiring harness (for heated seats) at inner shield and feed back harness through hole in shield.




11. Engage inner J-straps.
12. Install trim ring.
13. Install screws attaching trim ring to seat back frame.
14. Engage outer J-straps at seat back.
15. Install three screws attaching outboard side shield.
16. Install two screws attaching inboard side shield.
17. Press outboard side handle on retainer tab until it engages.
18. Install two screws attaching outer side shield buckle side.
19. Install seat inner panel. Installation
20. Install armrest. Armrest - Installation.
21. Connect heat element wire harness.
22. Install second row seat. Seat - Installation.
23. Install headrest and sleeves. Headrest - Installation.
24. Connect battery negative cable.
