Removal

REMOVAL

1. Remove front seat headrest and sleeves. Headrest - Removal.
2. Remove front seat. Seat - Removal.

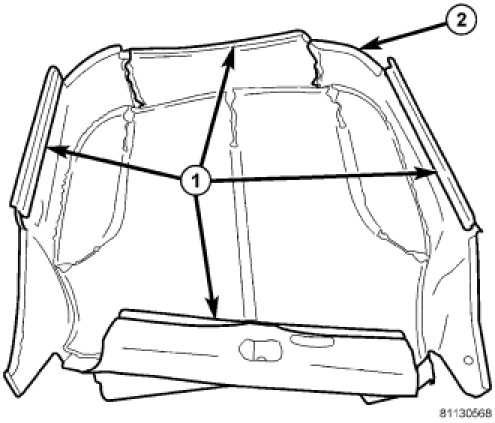

3. Remove front seat back from seat assembly. Seat Back - Removal.

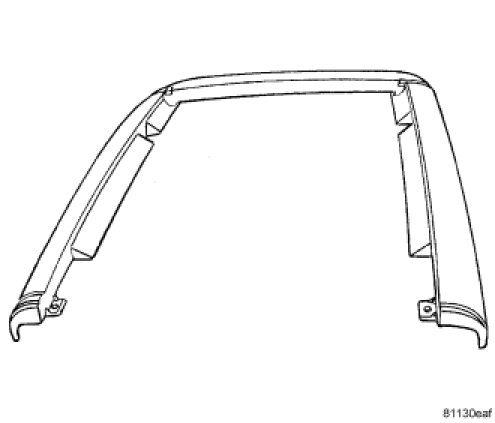

4. Remove front seat outer trim ring panel, if equipped.




5. Disengage seat back cover J-straps attaching to front seat back frame.
6. Remove front seat back foam/cover from front seat back frame.

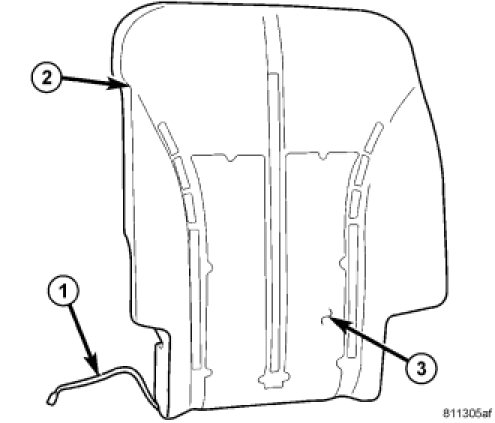

7. Separate front seat back cushion foam from seat cover.
