Removal

REMOVAL





1. Remove the seat back (1). Seat Back - Removal.
2. Disengage J-strap (2) at base of seat cushion.

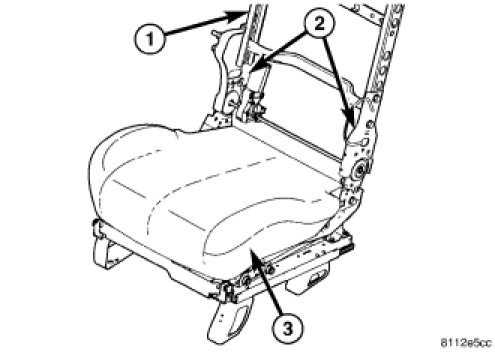

3. Roll seat cushion cover upward to access bolts attaching recliner assembly (2) to the seat back frame (1).
4. Remove bolts attaching recliner to seat back frame.
5. Separate recliner from seat.
