Motor-Seat Adjuster-Driver Horizontal

Component ID: 199

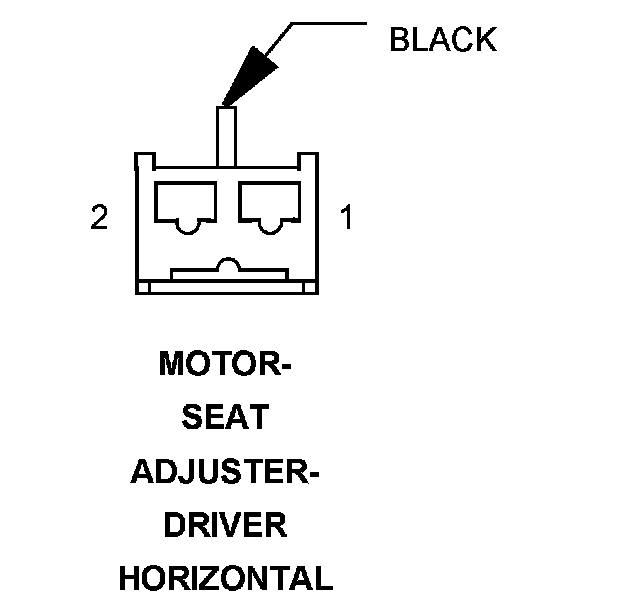

Component : MOTOR-SEAT ADJUSTER-DRIVER HORIZONTAL

Connector:
Name : MOTOR-SEAT ADJUSTER-DRIVER HORIZONTAL
Color : BLACK
# of pins : 2




Pin Circuit Description
1 P117 14LG/LB DRIVER SEAT HORIZONTAL REARWARD DRIVER
2 P115 14LG/OR DRIVER SEAT HORIZONTAL FORWARD DRIVER

Component Location - 37
