Motor-Seat Adjuster-Passenger Horizontal

Component ID: 203

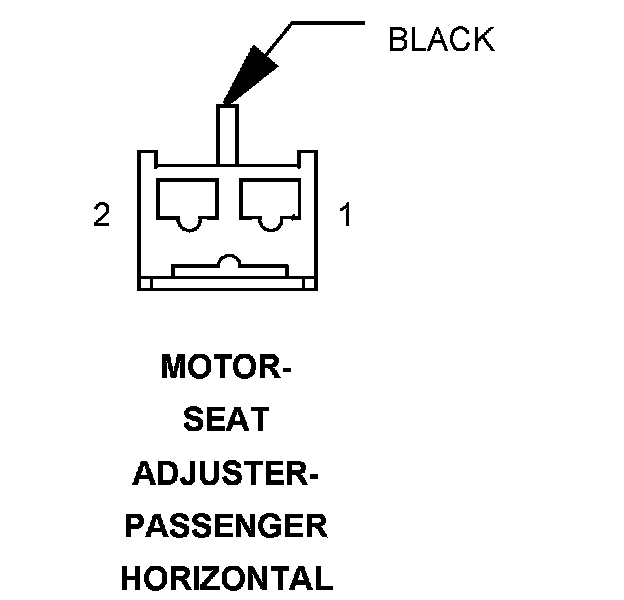

Component : MOTOR-SEAT ADJUSTER-PASSENGER HORIZONTAL

Connector:
Name : MOTOR-SEAT ADJUSTER-PASSENGER HORIZONTAL
Color : BLACK
# of pins : 2




Pin Circuit Description
1 P16 14LG/BR PASSENGER SEAT HORIZONTAL REARWARD DRIVER
2 P14 14LG/OR PASSENGER SEAT HORIZONTAL FORWARD DRIVER
