Motor-Seat Adjuster-Driver Lumbar

Component ID: 200
Component : MOTOR-SEAT ADJUSTER-DRIVER LUMBAR

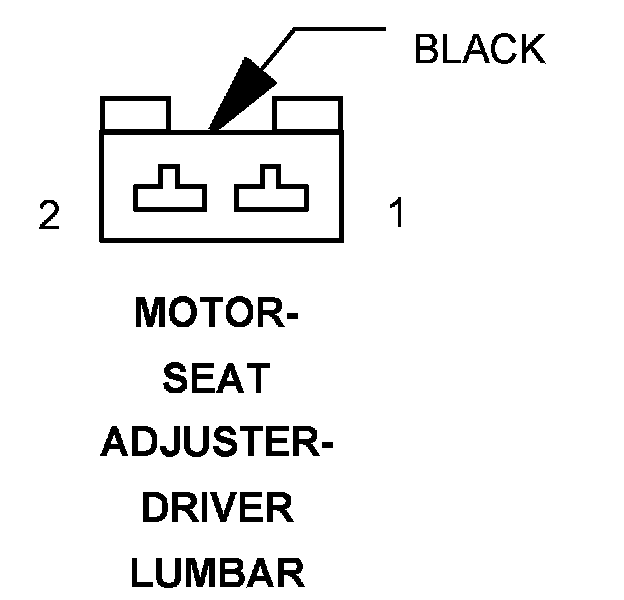

Connector:
Name : MOTOR-SEAT ADJUSTER-DRIVER LUMBAR
Color : BLACK
# of pins : 2




Pin Circuit Description
1 P107 18DB DRIVER SEAT LUMBAR IN DRIVER
2 P105 18PK DRIVER SEAT LUMBAR OUT DRIVER

Component Location - 38
