Programming and Relearning

SUNROOF MOTOR/MODULE CALIBRATION





CAUTION: There is no adjustment available for a normally operating sunroof. This procedure is used to set sunroof motor/module to sunroof assembly timing.

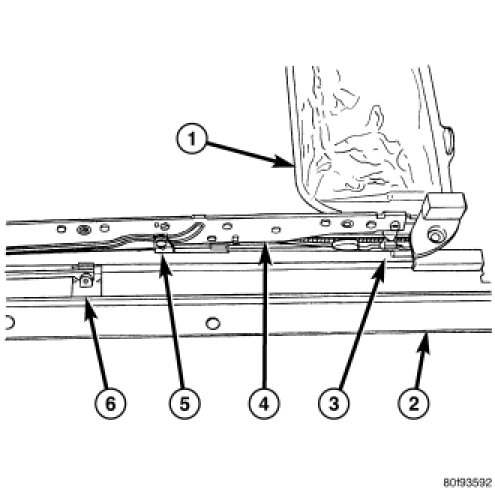

1. Manually push the sunroof guide rail assembly (4) to the full forward position until it is locked into position. This is verified by attempting to push the guide assembly rearward.

NOTE: The guide rail assembly (4) will be raised above the U-frame assembly (2) when in the lock position.

2. Remove the sunroof glass Removal.

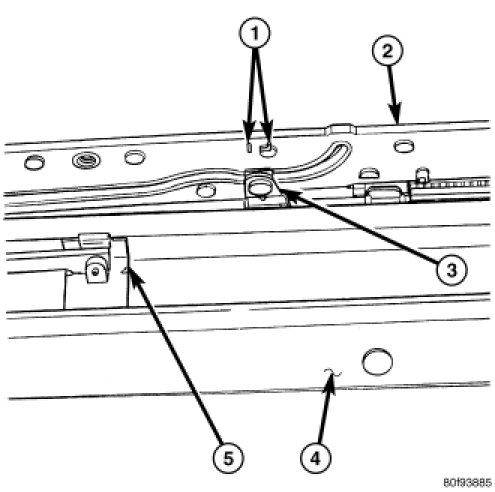

3. Manually move the guide rail pivot (3) inside the guide rail (2) cam slot until it is centered between the etched timing marks (1) on both rails.

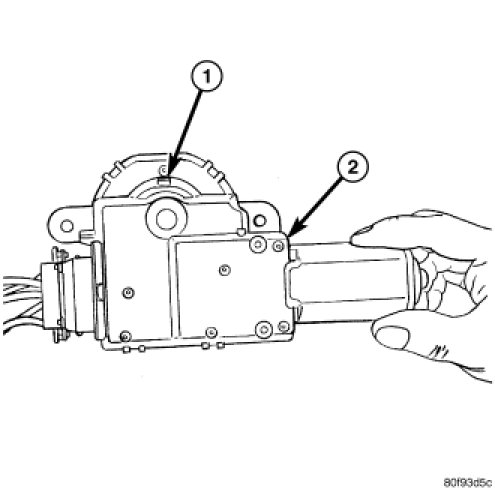

4. Verify that the white marking is visible in the new motor/module timing window (1). If the mark is not visible, connect a power source to the motor/module (2) and cycle the switch until the motor/module is in the closed position (white mark in window).
5. Install the sunroof motor/module and verify proper sunroof operation, Sunroof Motor With Control Unit - Installation.
6. Install the sunroof glass, leaving the retaining bolts loose.
7. Install the sunroof assembly into the vehicle Installation.
8. Flush the sunroof glass into the vehicle roof opening and check sunroof glass alignment Adjustments.
