Sunroof / Moonroof Motor: Adjustments

ADJUSTMENT

CAUTION: There is no adjustment available for a normally operating sunroof. The following procedure is only for setting sunroof motor to sunroof assembly timing.





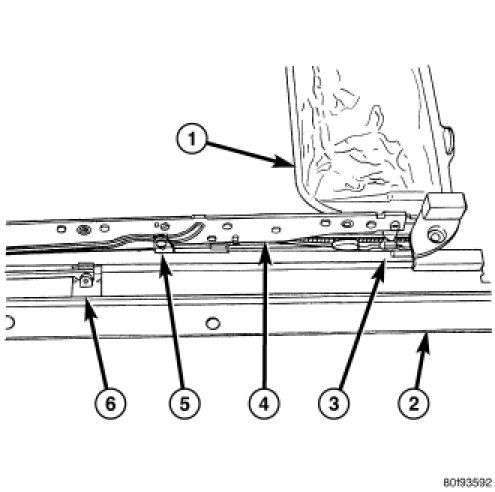

1. Manually push the sunroof guide assembly to the full forward position until it is locked into position. This is verified by attempting to push the guide assembly rearward.

NOTE: The guide rail will be raised above the U-frame assembly when in the lock position.

2. Remove the sunroof glass Removal.

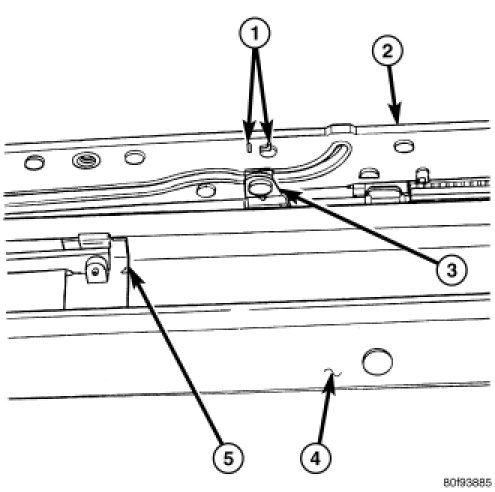

3. Manually move the guide pivot inside the guide rail cam slot until it is centered between the etched timing marks on both rails.

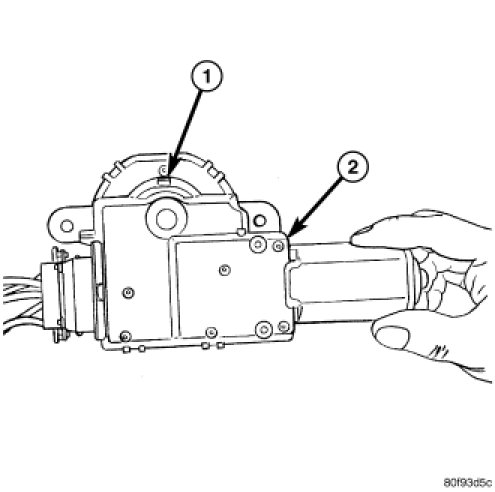

4. Verify that the white marking is visible in the new motor window. If the mark is not visible, connect a power source to the motor and cycle the switch until the motor is in the closed position (white mark in window).
5. Install the sunroof motor and verify proper sunroof operation Sunroof Motor - Installation.
6. Install the sunroof glass, leaving the retaining bolts loose.
7. Install the sunroof assembly into the vehicle Installation.
8. Flush the sunroof glass into the vehicle roof opening and check sunroof glass alignment Adjustments.
