Removal

REMOVAL

1. Move glass panel to the fully closed position.
2. Disconnect battery negative cable.
3. Remove headliner. Headliner - Removal.
4. Disconnect the four drain tubes from sunroof housing. Removal.

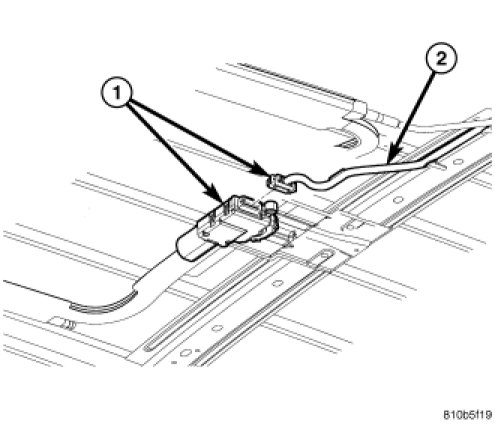

5. Disconnect sunroof wire connector.

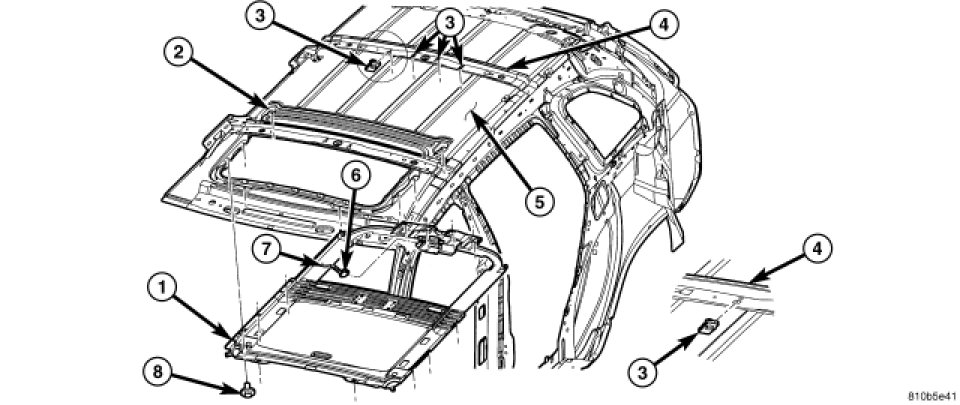

6. Loosen fasteners attaching sunroof assembly.
7. With the aid of a helper, support the sunroof and remove the fasteners attaching sunroof assembly to roof panel.
8. Remove sunroof from vehicle.
