Description

DESCRIPTION





WARNING: Keep fingers and other body parts out of sunroof opening at all times.

The power sunroof system allows the sunroof to be opened, closed or placed in the vent position electrically by actuating a switch in the overhead console. The sunroof system receives battery feed through a fuse in the Integrated Power Module (IPM), when the ignition switch is in the RUN and ACCESSORY positions. The sunroof will continue to operate normally with the key in the OFF position or with the key removed while the Accessory Delay System is active.

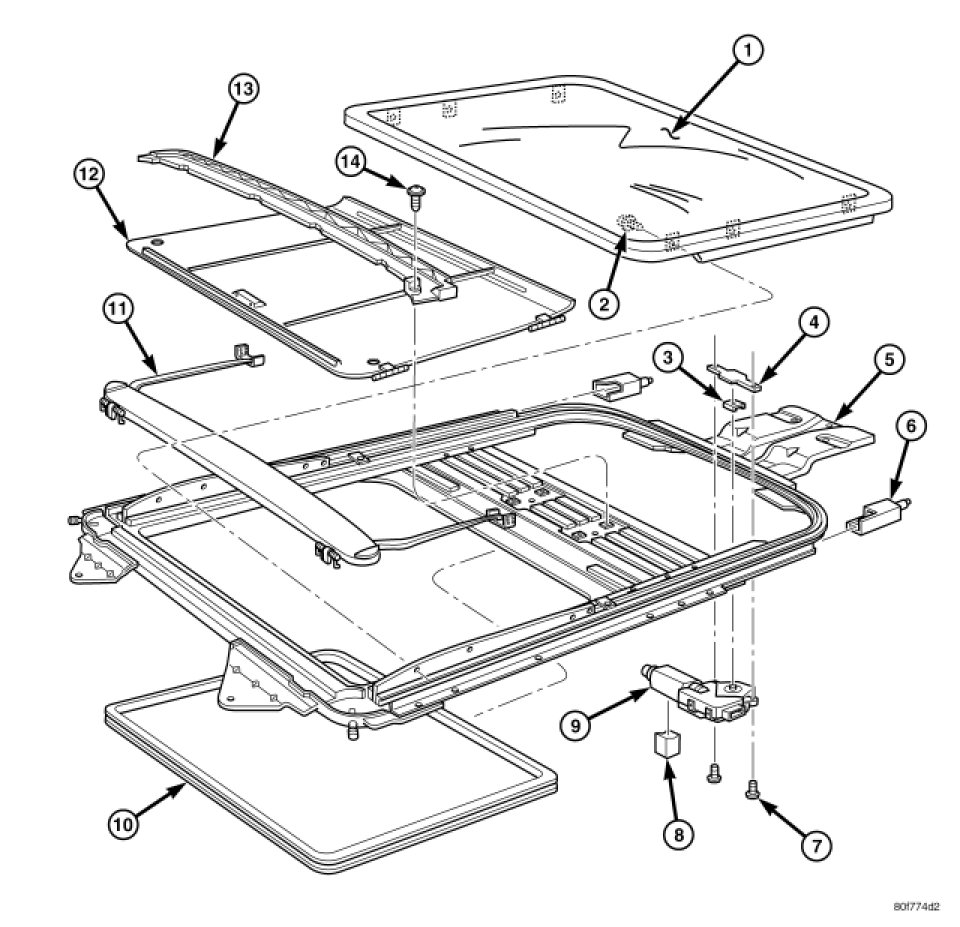

The sunroof glass panel (1) tilts upward at the rear for ventilation and slides rearward under the roof when open. The panel seals flush with the roof in the closed position to eliminate wind noise. The sunroof includes a manual-sliding sunshade (12) to cover the deep-tinted glass panel.

The main components of the power sunroof system are:

- The motor/module assembly (9)
- The power sunroof glass (1)
- The U-Frame assembly (5)
- The power sunroof switch
- The manual-sliding sunshade (12)
