Removal

REMOVAL





CAUTION: The luggage rack has to be removed before the cross bars can be removed.

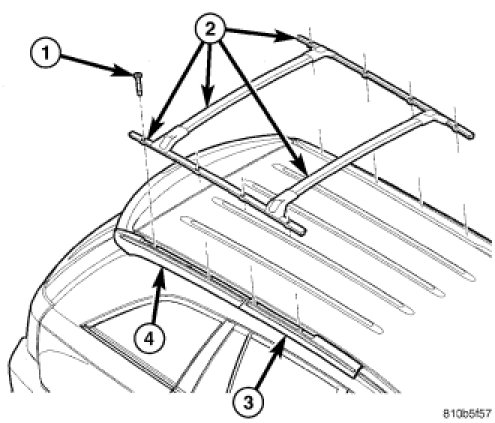

1. Remove screws attaching side rails.
2. Remove luggage rack assembly from vehicle.
3. Depress crossbar lever down on each side of crossbar to unlock.
4. Remove crossbar(s) from side rails by sliding bar off the front of the side rails.
