Mirror-Outside Rearview-Driver

Component ID: 169

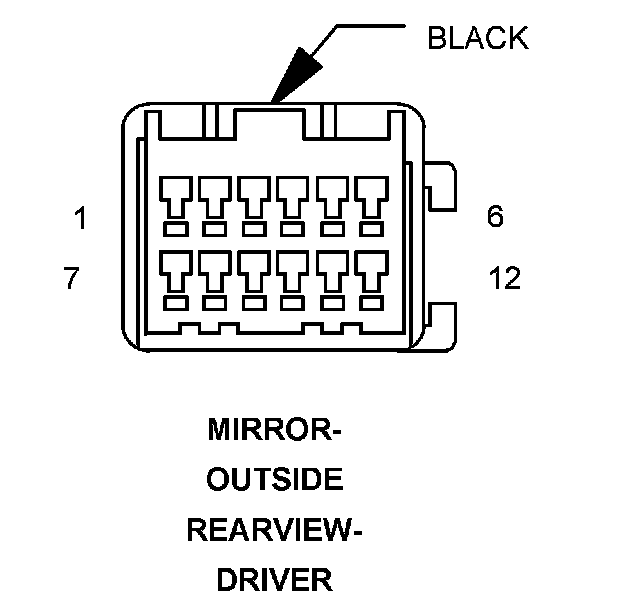

Component : MIRROR-OUTSIDE REARVIEW-DRIVER

Connector:
Name : MIRROR-OUTSIDE REARVIEW-DRIVER
Color : BLACK
# of pins : 12




Pin Circuit Description
1 P67 22OR/TN DRIVER MIRROR VERTICAL POSITION SIGNAL
2 P69 22WT/TN DRIVER MIRROR SENSOR GROUND
3 P65 22VT/TN DRIVER MIRROR HORIZONTAL POSITION SIGNAL
4 P73 22TN/VT DRIVER MIRROR COMMON DRIVER
5 P75 22TN/LG DRIVER MIRROR HORIZONTAL DRIVER
6 P71 22TN/DG DRIVER MIRROR VERTICAL DRIVER
7 - -
8 P669 22OR/LG DRIVER MIRROR SENSOR SUPPLY
9 P114 20TN/WT AUTO DAY/NIGHT MIRROR (-)
10 P112 20TN/OR AUTO DAY/NIGHT MIRROR (+)
11 P53 20LG/OR DRIVER HEATED MIRROR DRIVER
12 C17 20LB/WT DRIVER HEATED MIRROR FEED

Component Location - 40
