Driver Door Fails To Lock

*DRIVER DOOR FAILS TO LOCK





For a complete wiring diagram Consult Diagrams/Electrical

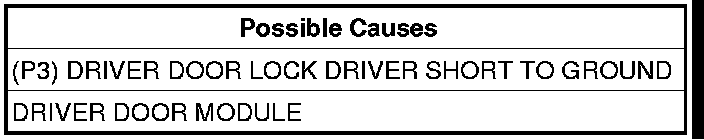

Diagnostic Test

1. (P3) DRIVER DOOR LOCK DRIVER WIRE SHORT TO GROUND




Turn the ignition off.
Remove the inner door trim panel to gain access to the Driver Door Module "C1" connector.
Disconnect the Driver Door Module "C1" connector.
Measure the resistance between the (Z821) Ground and the (P3) Driver Door Lock Driver circuit in the Driver Door Module "C1" connector.
Is the resistance below 200 ohms?

Yes

- Repair the (P3) Driver Door Lock Driver wire for a short to ground.
- Perform the BODY VERIFICATION TEST - VER 1. Body Verification Test.

No

- Replace the Driver Door Module.
- Perform the BODY VERIFICATION TEST - VER 1. Body Verification Test.
