Latch-Door-Passenger Rear

Component ID: 167

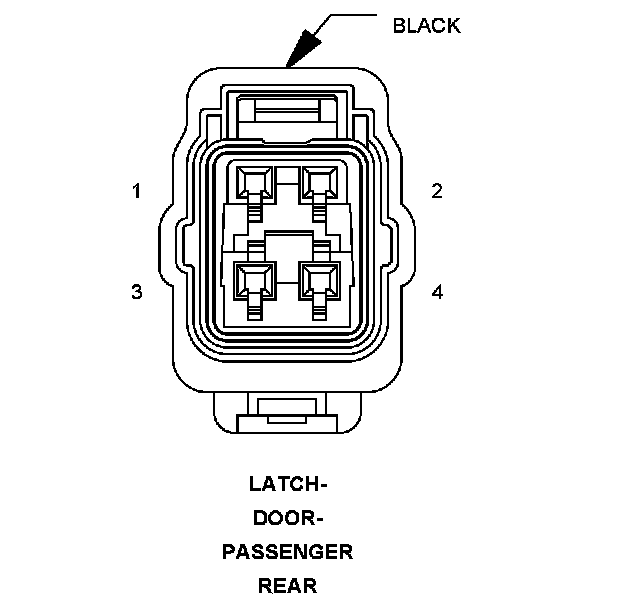

Component : LATCH-DOOR-PASSENGER REAR

Connector:
Name : LATCH-DOOR-PASSENGER REAR
Color : BLACK
# of pins : 4




Pin Circuit Description
1 G76 20VT/YL RIGHT REAR DOOR AJAR SWITCH SENSE
2 G982 20VT/TN GROUND
3 P292 18VT/LG DOOR UNLOCK DRIVER
4 P222 18VT/DG DOOR LOCK DRIVER

Component Location - 42
