Latch-Door-Liftgate

Component ID: 165

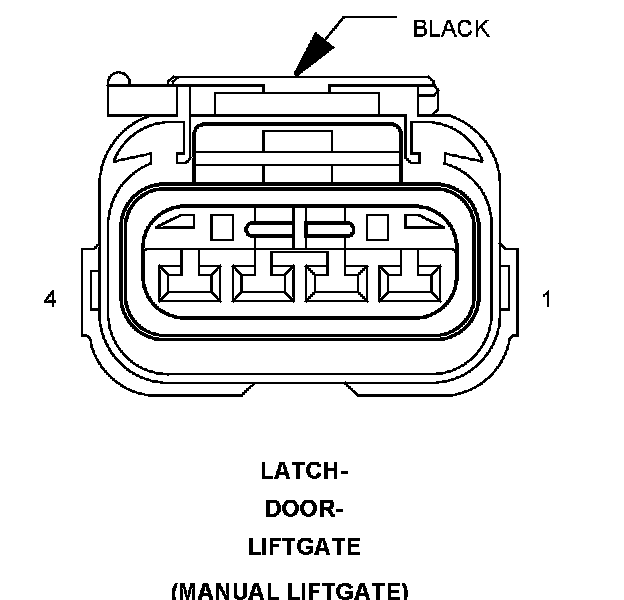

Component : LATCH-DOOR-LIFTGATE

Connector:
Name : LATCH-DOOR-LIFTGATE
Color : BLACK
# of pins : 4
Qualifier : (MANUAL LIFTGATE)




Pin Circuit Description
1 Z78 20BK/OR GROUND
2 G78 22VT/OR LIFTGATE AJAR SWITCH SENSE
3 P31 18TN/YL LIFTGATE RELEASE DRIVER
4 Z245 18BK/GY GROUND
