Rear Door Trim Panel

REMOVAL
1. Release door latch and open door.
2. Lower door glass.

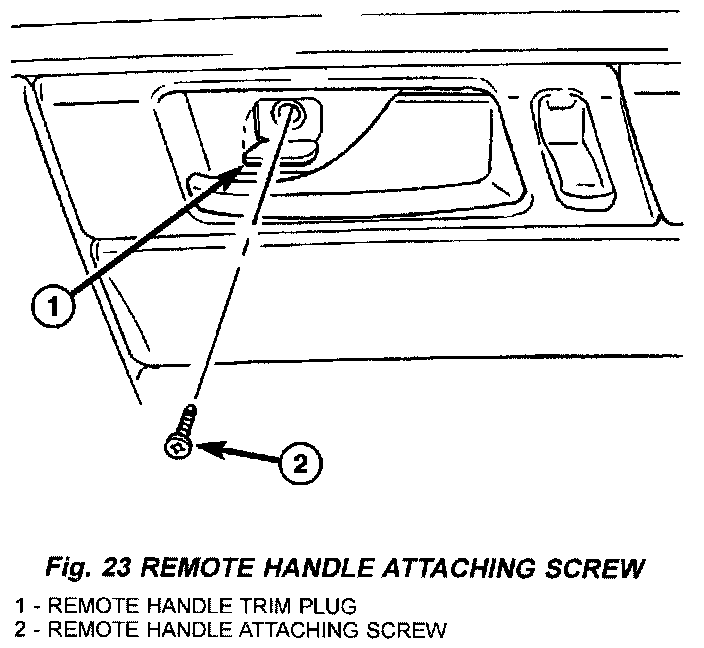

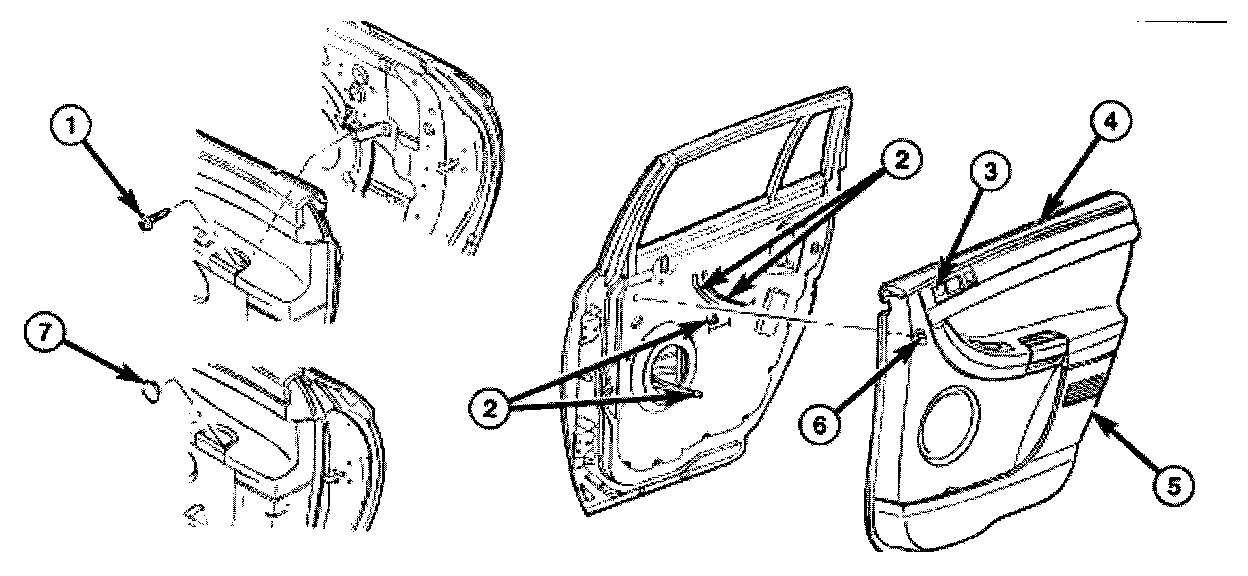

3. Open remote handle trim plug and remove screw from inside arm rest pull cup.
4. Open remote handle trim plug and remove screw from behind inside remote handle.
5. Disengage push-in fasteners attaching trim to door panel around perimeter of trim panel.
6. Tilt trim panel outward to clear locator pins on backside of trim panel.
7. Disconnect trim panel from retainer channel in inner belt weatherstrip at top of door by lifting while gently jiggling.

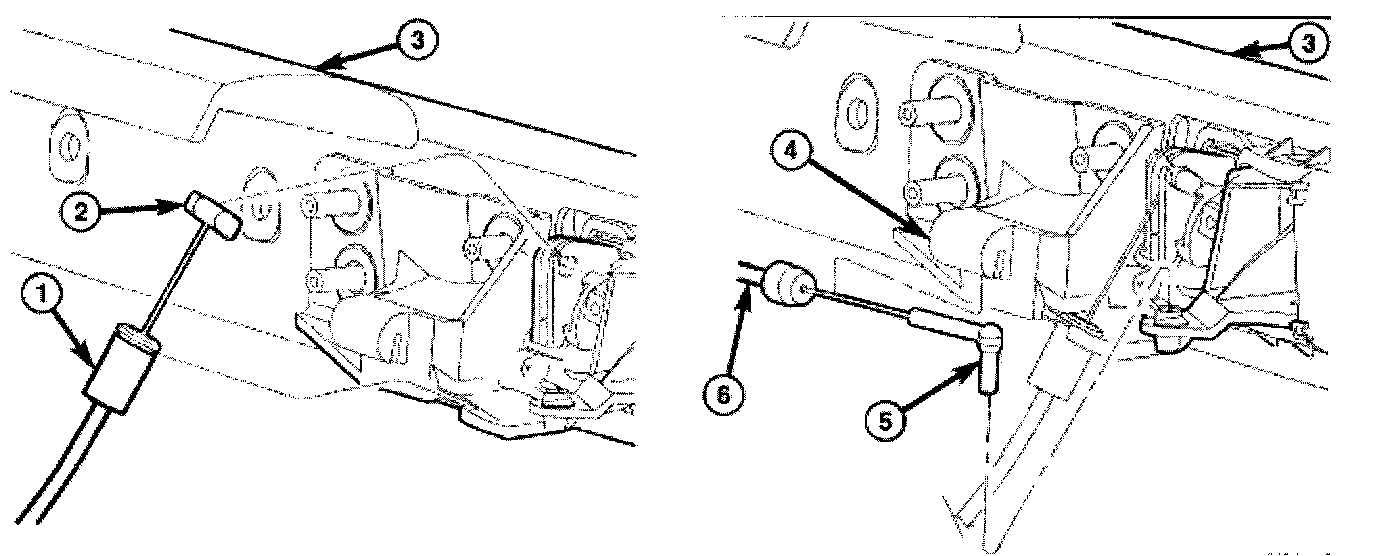

8. Move trim panel away from door and disengage actuator cables attaching inside remote handle.
9. Disconnect wire connectors to switches.






CAUTION: Do not allow door trim panel to hang by the wire connector or wiring.






10. Disconnect wire connector from power door lock switch, mirror switch, and power window switch if so equipped.
11. Remove trim panel from door.

INSTALLATION






1. Place trim panel in position.
2. Connect wire connector to power door lock switch mirror switch, and power window switch if so equipped.






CAUTION: Do not allow door trim panel to hang by the wire connector or wiring.






3. Move trim panel away from door and engage actuator cables attaching inside remote handle.
4. Connect trim panel to retainer channel in inner belt weatherstrip at top of door gently jiggling while lowering into position.
5. Tilt trim panel outward to align locator pins into position on backside of trim panel.
6. Apply hand pressure to engage push pin fasteners, attaching trim panel to door by working around perimeter of trim panel.






7. Install screw behind inside remote handle and close remote handle trim plug (1).






8. Install screw inside arm rest pull cup and close remote handle trim plug.
9. Raise door glass.
10. Close door.
