Quarter Trim Panel - Installation

INSTALLATION

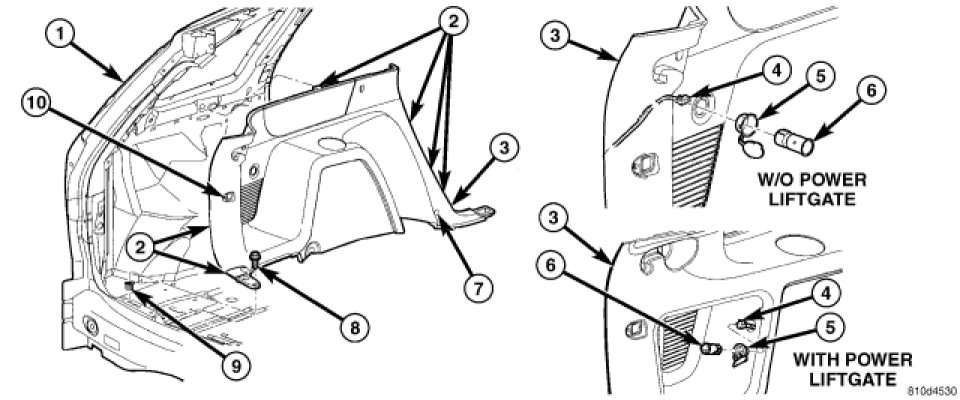

1. Place quarter trim panel into position.
2. Reach behind trim panel, connect power outlet connector and speaker connector.
3. Set locators pins into position and pressing on panel to engage the locking tabs attaching quarter trim panel body side panel.
4. Install screw attaching tie down ring.
5. Place quarter trim panel bolster cover (speaker grille) into position and press on bolster to engage locking pins. Speaker - Installation.
6. Install C-pillar lower seat belt anchor and D-pillar lower seat belt anchor. . Service and Repair
7. Install third row seat into vehicle.Seat - Installation.
8. Install rear floor storage bin.Installation.
9. Install liftgate sill scuff plate. Liftgate Sill Scuff Plate - Installation.
10. Install rear door sill scuff plate. Rear.
11. Open rear door and liftgate.
