Installation

INSTALLATION

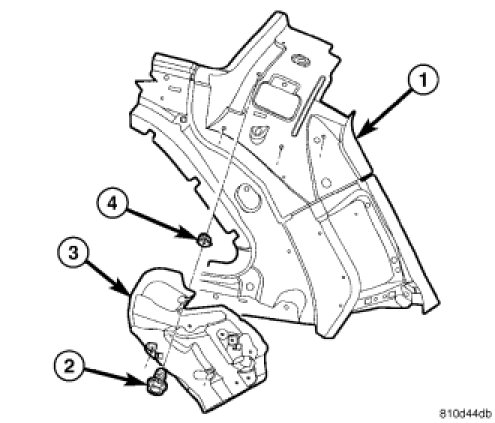

1. Install D-pillar reinforcement molding attaching screw to body side, if necessary.

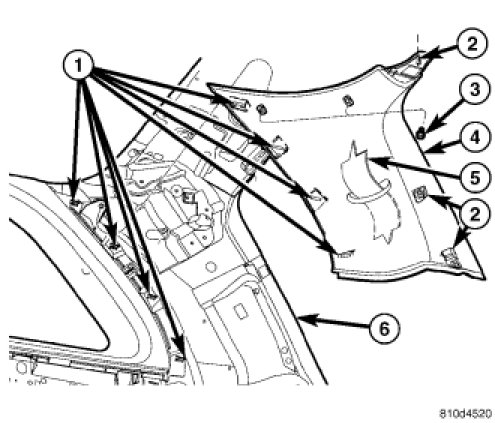

2. Place D-pillar trim into position.
3. Pass seat belt through slot in D-pillar trim panel.
4. Press on D-pillar trim to engage locking tabs.

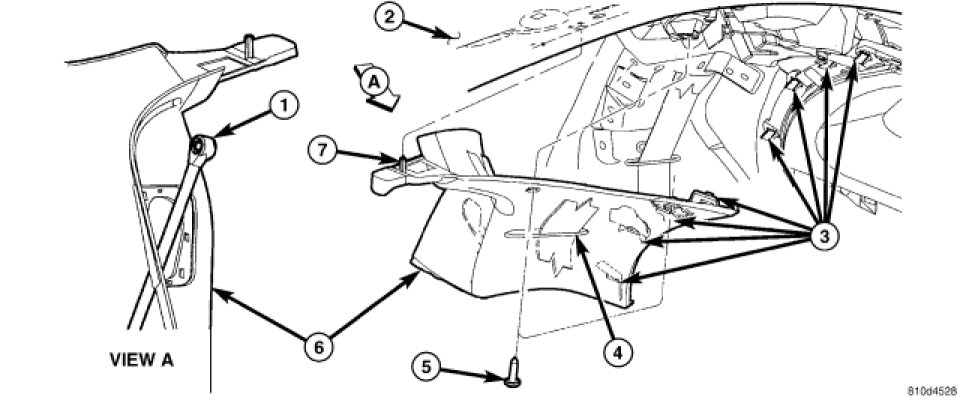

5. Install the two screws attaching upper D-pillar.
6. Connect power liftgate link from ball head bracket, if equipped.




7. Install upper trim panel on liftgate, if equipped with power liftgate.
8. Install bolt attaching second row seat belt lower anchor to quarter trim panel. Service and Repair
9. Install liftgate sill scuff plate. Liftgate Sill Scuff Plate - Installation.
10. Install rear header trim cover. Installation.
