Removal

REMOVAL





1. Remove bolt attaching lower seat belt anchor to floor.
2. Lower shoulder belt height adjuster to the bottom of travel.
3. Remove shoulder belt turning loop from height adjuster.
4. Use a Snap-on(R) Trim Pad Remover tool (A179A), or equivalent, and remove shoulder belt height adjuster knob.
5. Remove shoulder belt bezel from trim cover.

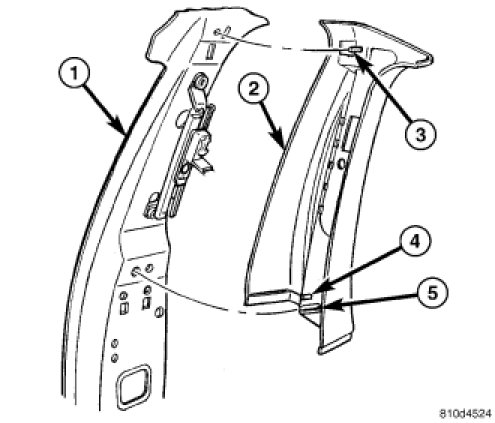

6. Remove screw attaching trim cover to B-pillar from inside bezel cavity.
7. Disengage hidden clips attaching trim cover to B-pillar.
8. Remove B-pillar trim cover from vehicle.
