Front Console

INSTALLATION

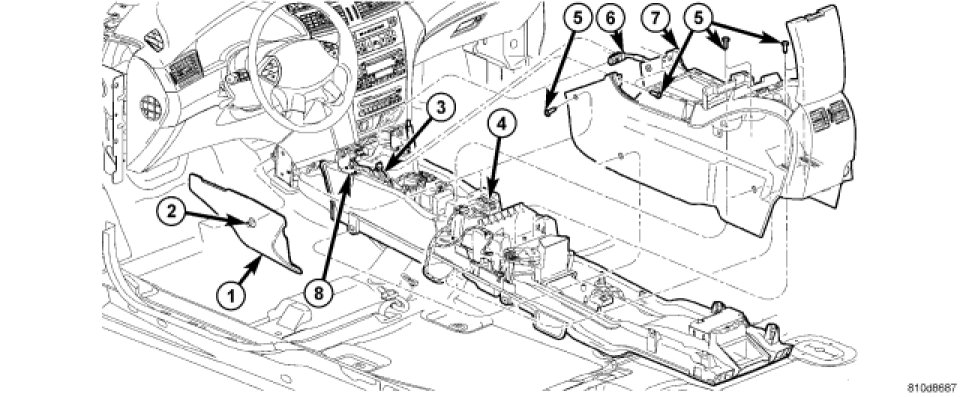

1. Place front floor console into position.
2. Raise front floor console and connect wiring harness.
3. Install front floor console sidewall attaching screws, three per side.
4. Install two attaching screws to bottom of bin.
5. Install two attaching screws to bottom of cup holder.
6. Install two screws attaching front floor console to the lower instrument panel.




7. Install transmission range indicator surround bezel.
8. Install shift bezel. Console Shifter Bezel - Installation.
