Carpet - Installation

INSTALLATION

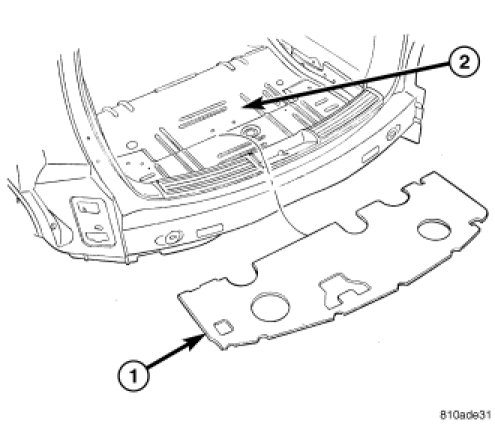

1. Place floor silencer into position in vehicle.

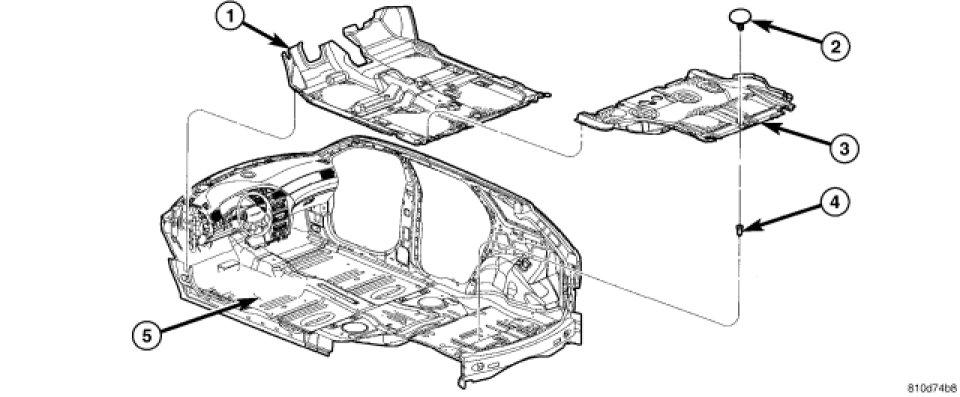

2. Insert rear floor carpet into position in vehicle.
3. Insert front carpet. Move carpet into position under instrument panel. Work carpet rearward into position.

CAUTION: Use care when pulling wires and connectors through the carpet.

4. Pull wire harnesses and connectors through carpet.




5. Install fasteners attaching carpet to floor.
6. Install quarter trim panel. Console Shifter Bezel - Installation.
7. Install B-pillar lower trim. B-Pillar Trim.
8. Install liftgate sill scuff plate. Liftgate Sill Scuff Plate - Installation.
9. Install the rear floor stowage bin. Installation.
10. Install cowl side trim panels. Cowl Trim - Installation.
11. Install front and rear sill scuff plates. Front, and Rear.
12. Install floor console base assembly. Floor Console Base Assembly - Installation.
13. Install rear floor console. Floor Console - Installation.
14. Install front floor console. Floor Console - Installation.
15. Install shift bezel. Console Shifter Bezel - Installation.
16. Install the gear shift knob.
17. Install second row seats. Seat - Installation.
18. Install first row seats. Seat - Installation.
19. Install front seats. Seat - Installation.
