Rear Wheelhouse Splash Shield - Installation

INSTALLATION

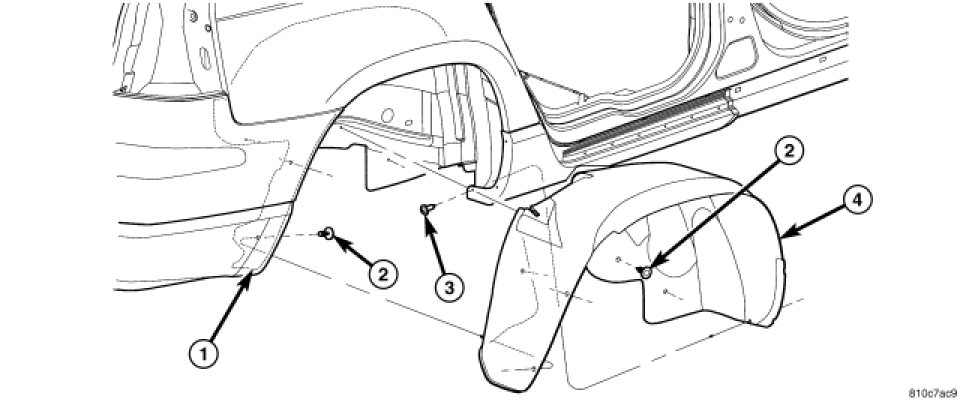

1. Place splash shield into position.
2. Install four new push pin fasteners attaching splash shield to inner wheelhouse.
3. Install two new push pin fasteners attaching rear splash shield to rear fascia aperture bracket. Installation.
4. Install screw attaching rear wheelhouse splash shield to cladding.
5. Install rear wheel.
6. Remove safety stands and lower vehicle.
