Installation

INSTALLATION





1. Door header blackout tape cannot be reused;
a. Remove tape residue from door.
b. Clean back of door header blackout tape with Mopar(R) Super Kleen, or equivalent.
c. Wipe door header blackout tape dry with lint free cloth.
d. Apply a single coat of Mopar(R) TPO Molding Prep to tape side of door header blackout tape and allow to dry thoroughly.
e. Apply new body side molding (two sided adhesive) tape to back of door header blackout tape.
2. Clean body surface with Mopar(R) Super Kleen, or equivalent. Wipe surface dry with lint free cloth.

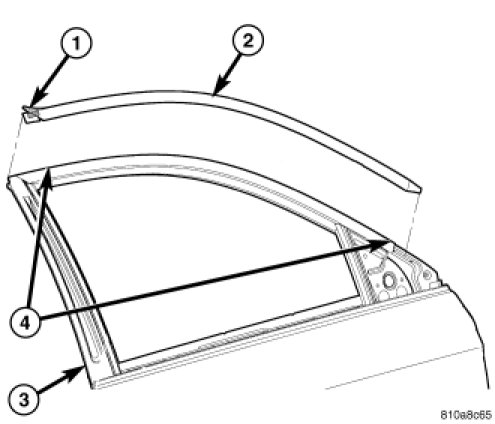

3. Apply door header blackout tape from rear to front of door.
4. Using a felt pad or clean shop towel apply enough force to assure adhesion. Do not apply excessive force, or damage to door header blackout tape may result.
