Removal - C-Pillar

REMOVAL - C-PILLAR





1. Roll door glass down.
2. Remove door trim panel. Rear Door Trim Panel - Removal.
3. Remove rear door inner belt molding weatherstrip.
4. Remove fixed glass run assembly. Removal.
5. Remove outer door belt molding.

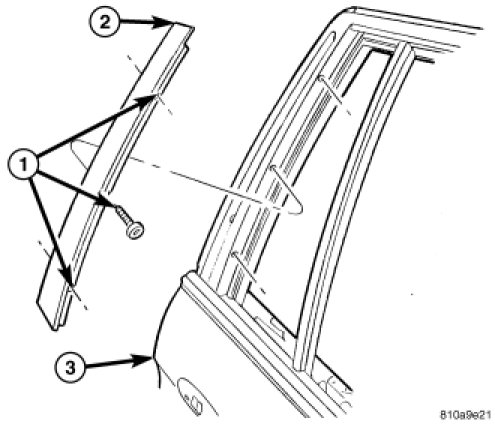

6. Remove screws attaching front edge of applique to door frame.
7. Remove applique from vehicle.
