Rear Door Applique
>>
Removal
>>
Removal - B-Pillar
Removal - B-Pillar

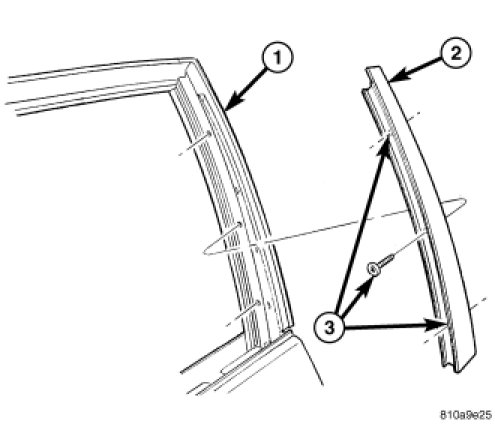

REMOVAL - B-PILLAR
1.
Roll door glass down.
2.
Remove outer door belt molding, as necessary.
3.
Remove screws attaching front edge of applique to door
frame
.
4.
Remove applique from vehicle.
