Installation

INSTALLATION

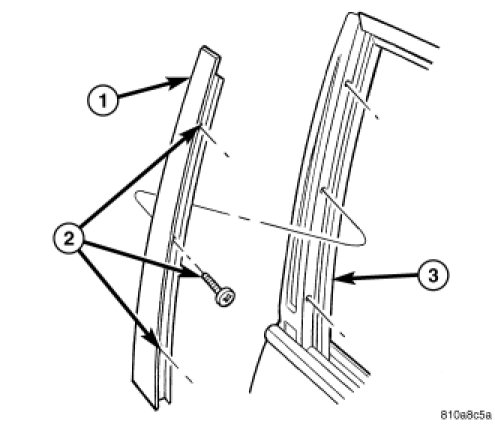

1. Position applique on vehicle.
2. Hook rear edge of applique over rear edge of door frame and seat applique bottom edge on sheet metal.
3. Install screws attaching applique to door frame.
4. Install door glass run channel. Front Door Glass Run Channel - Installation.
5. Install outer door belt molding.
